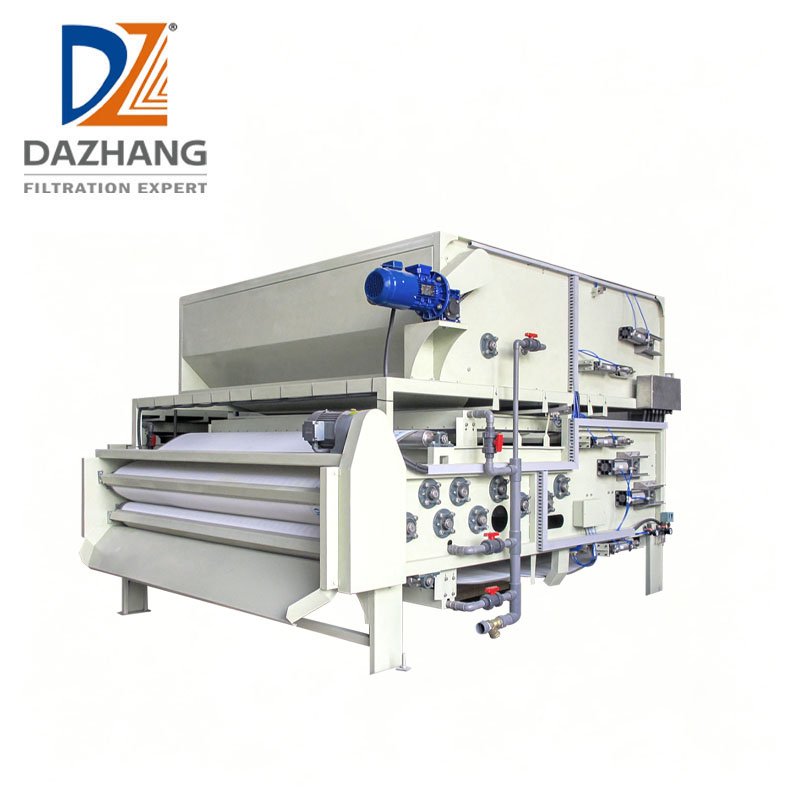

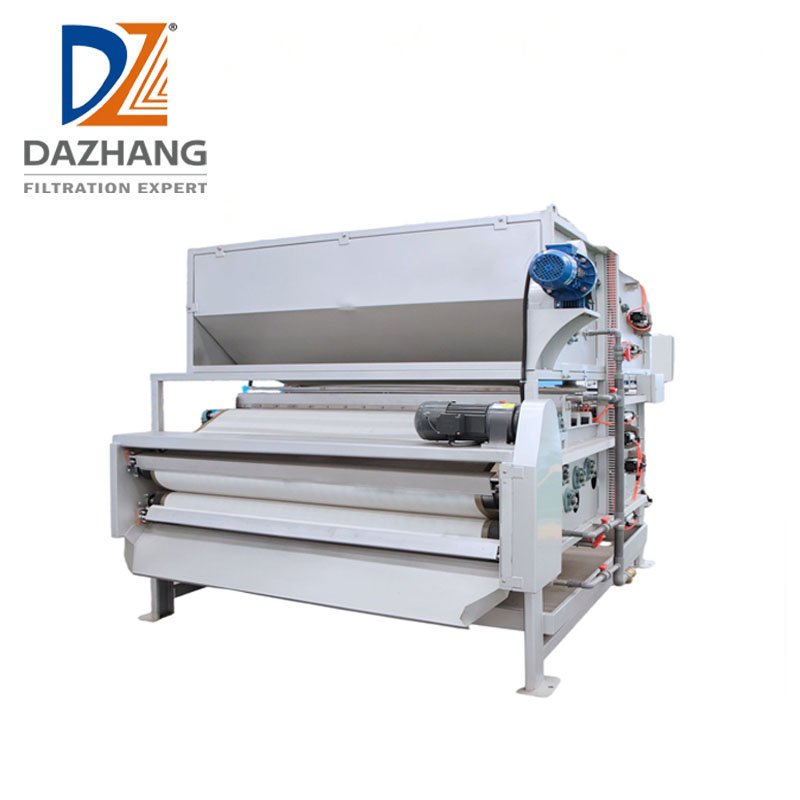

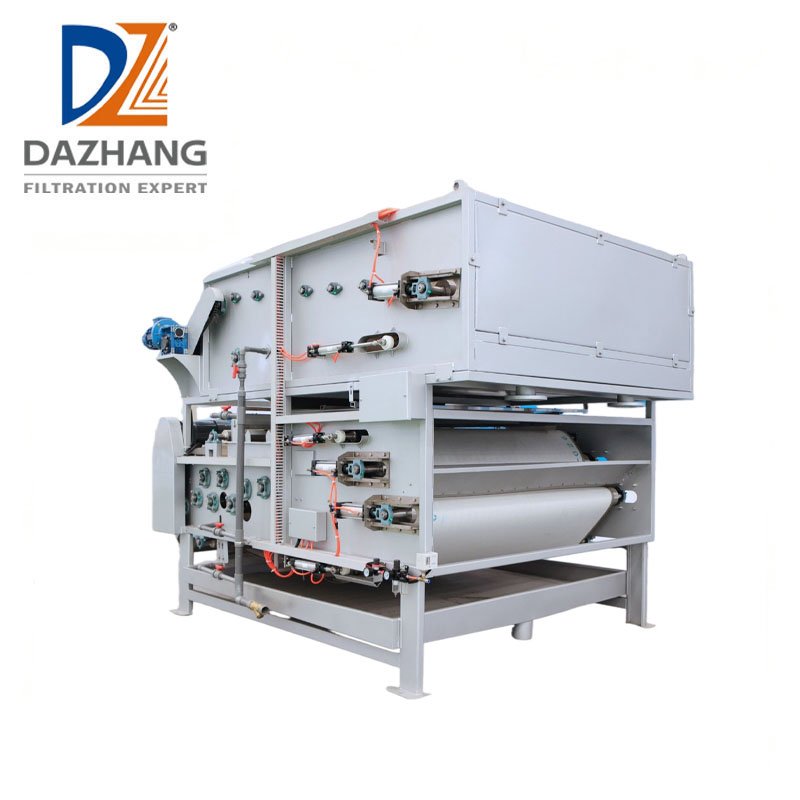

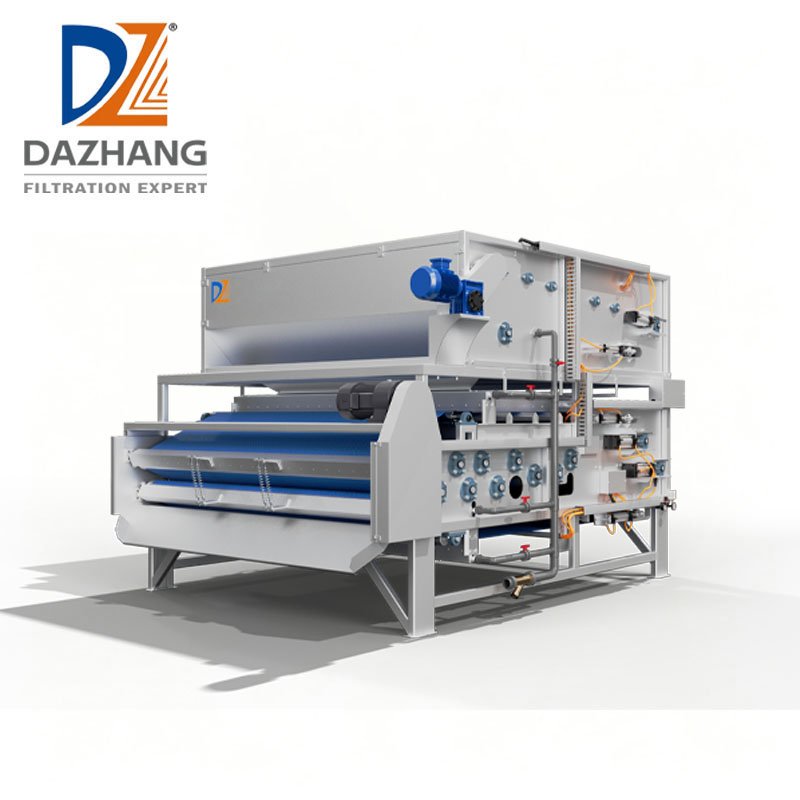

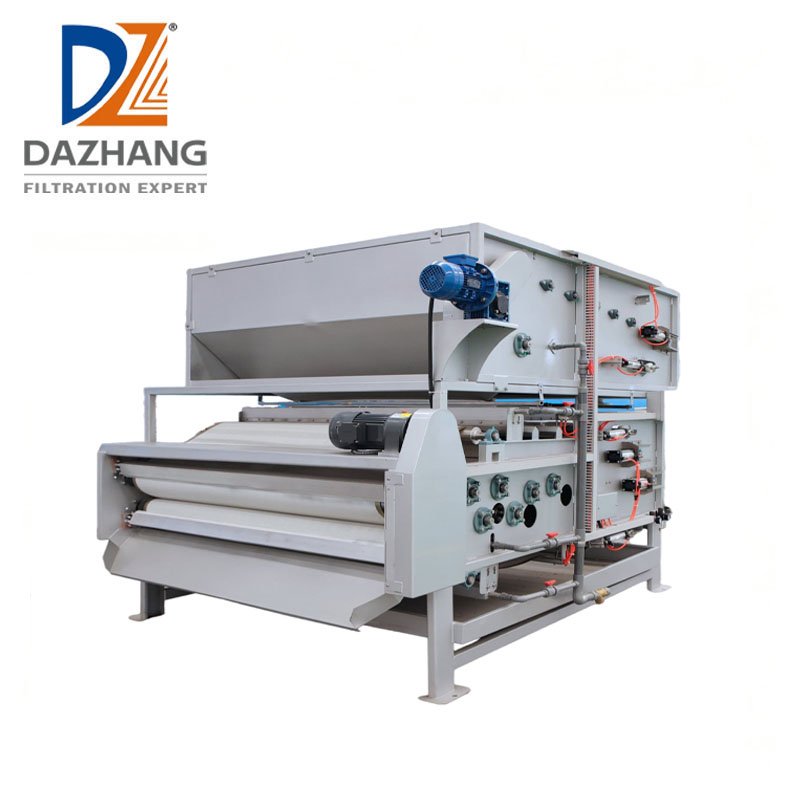

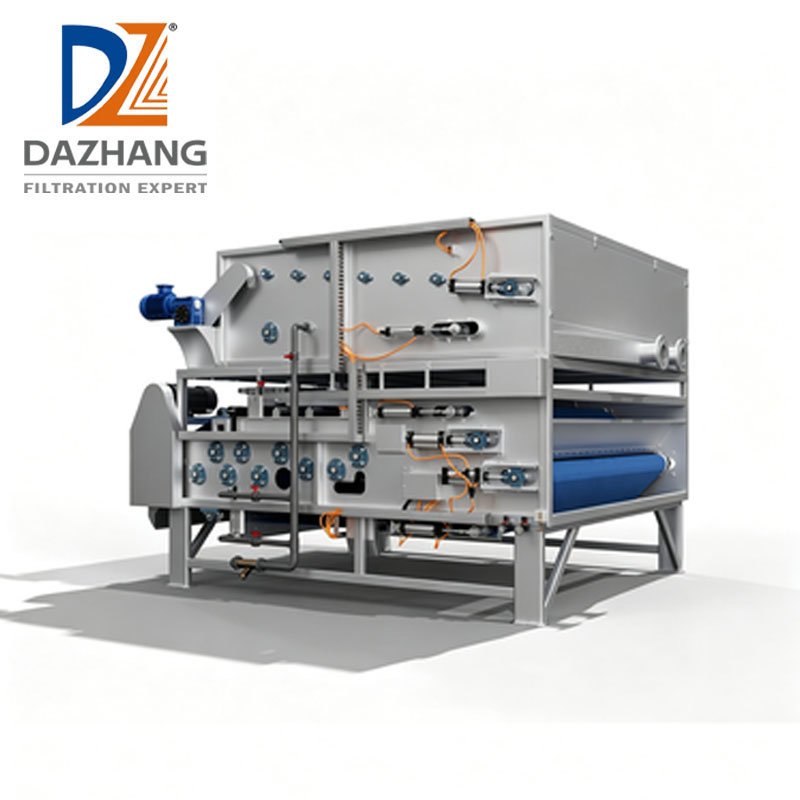

Triple-Belt Filter PressTriple-Belt Filter Press
The Triple-Belt Filter Press is designed for continuous sludge dewatering with an advanced three-belt structure. By combining gravity thickening and mechanical pressure dewatering, it delivers stable performance, high processing capacity, and efficient water removal for wastewater treatment and industrial sludge applications.
Reliable Structure
Built for reliable long-term sludge treatment.
Triple-Belt Design
Three belts improve dewatering efficiency and capacity.
Efficient Dewatering
Removes water effectively through multiple pressure zones.
Continuous Operation
Enables continuous sludge feeding and dewatering.

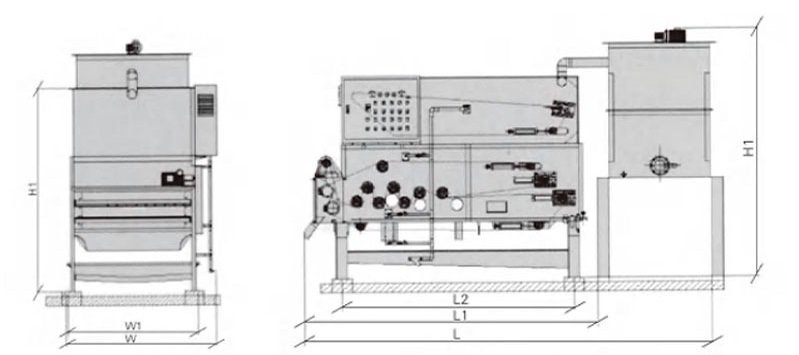

Structural Dimensions & Site Planning
Precise CAD diagrams corresponding to our technical parameters to guide your foundation construction and equipment setup.
Serving Diverse Industrial Applications
Our filter press systems are widely used across multiple industries where efficient dewatering and solid-liquid separation are essential.
| Model | Belt Width (mm) | Low Consistency | Middle Consistency | Cake Moisture (%) | Power (kW) | S.S. Tray | Dimensions (mm) | Foundation Dimensions L2×W1 (mm) | Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity (m³/h) Feed Concentration 0.5-1% | Dry Solid (kg/h) | Capacity (m³/h) Feed Concentration 1-1.5% | Dry Solid (kg/h) | Driving Motor | Mixing Power | Gravity Concentrator Motor | L | W | H | ||||||
| mm | mm | mm | |||||||||||||
| DNY500-3 | 500 | 5-15 | 30-60 | 4-7.5 | 50-94 | 65-84 | 0.75 | 0.75 | 0.55 | Yes | 2600 | 1050 | 2175 | 2455×836 | 1200 |
| DNY750-3 | 750 | 7-15 | 42-90 | 6-10.5 | 75-140 | 65-84 | 0.75 | 0.75 | 0.55 | Yes | 2600 | 1300 | 2160 | 2455×1096 | 1600 |
| DNY1000-3 | 1000 | 10-20 | 60-120 | 11-15 | 100-188 | 65-84 | 0.75 | 0.75 | 0.55 | Yes | 3000 | 1550 | 2160 | 2455×1346 | 1800 |
| DNY1250-3 | 1250 | 15-25 | 84-168 | 15-21 | 140-263 | 65-84 | 0.75 | 0.75 | 0.55 | Yes | 3000 | 1800 | 2160 | 2455×1596 | 1960 |
| DNY1500-3 | 1500 | 18-30 | 100-198 | 18-25 | 160-300 | 65-84 | 1.1 | 1.1 | 0.55 | Yes | 3000 | 2050 | 2160 | 2455×1846 | 2250 |
| DNY1500L-3 | 1500 | 20-35 | 110-215 | 20-28 | 180-330 | 65-84 | 1.1 | 1.1 | 0.55 | Yes | 3000 | 2550 | 2160 | 2455×2096 | 2600 |
| DNY1750-3 | 1750 | 22-40 | 120-234 | 21-30 | 196-368 | 65-84 | 1.5 | 1.5 | 0.75 | No | 3000 | 2300 | 2160 | 2455×2096 | 2800 |
| DNY2000-3 | 2000 | 25-45 | 140-270 | 23-35 | 240-450 | 65-84 | 1.5 | 1.5 | 0.75 | No | 3200 | 2550 | 2180 | 2455×2346 | 3200 |
| DNY2500-3 | 2500 | 35-55 | 180-350 | 28-50 | 300-550 | 65-84 | 2.2 | 1.5 | 1.1 | No | 4600 | 3050 | 2600 | 4255×2846 | 3600 |
| DNY3000-3 | 3000 | 40-65 | 220-420 | 35-60 | 350-650 | 65-84 | 3 | 2.2 | 1.5 | No | 4600 | 3550 | 2600 | 4255×3346 | 4000 |
Need Help Selecting the Right Filter Press?
Our engineers will recommend the most suitable model based on your material characteristics, processing capacity, and production requirements.
