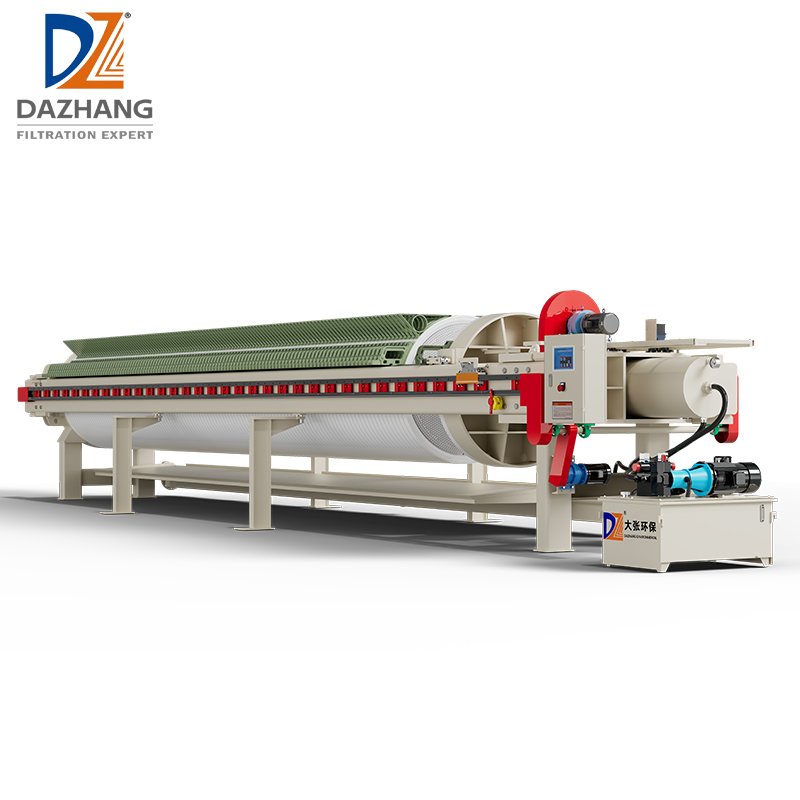

High Pressure Circular Filter Press
The Round Plate Filter Press is engineered for high-pressure filtration of fine-particle and high-moisture materials. Its reinforced round filter plates provide uniform pressure distribution, lower cake moisture, and reliable performance, making it an ideal solution for ceramics, kaolin, stone wastewater, and other demanding dewatering applications.
Round Plate Design
Round plates ensure uniform pressure distribution.
High Pressure Filtration
Designed for demanding high-pressure filtration tasks.
Low Cake Moisture
Produces drier filter cakes for easier handling.
Ceramic Applications
Ideal for ceramics, kaolin and stone wastewater.

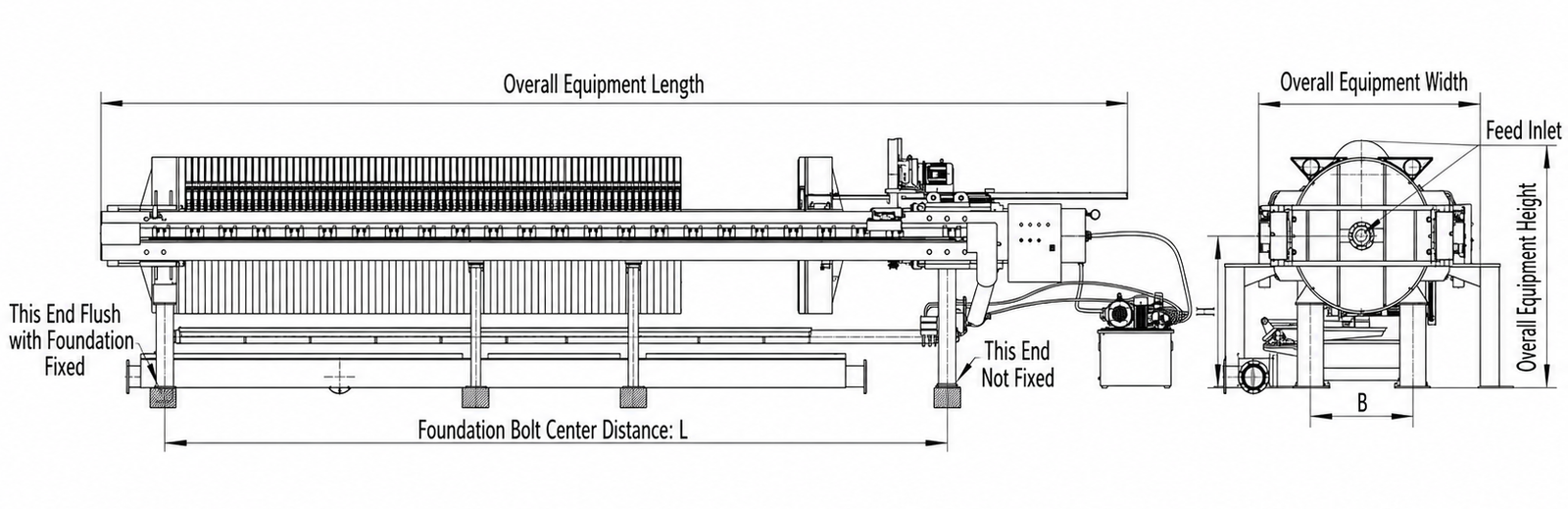

Structural Dimensions & Site Planning
Precise CAD diagrams corresponding to our technical parameters to guide your foundation construction and equipment setup.
Serving Diverse Industrial Applications
Our filter press systems are widely used across multiple industries where efficient dewatering and solid-liquid separation are essential.
XMY Series Technical Data
| Model | Area (㎡) | Plate Size (mm) | Filter Chamber Volume (L) | Plate Qty (pcs) | Filtration Pressure (MPa) | Weight (kg) | Dimensions L×W×H (mm) | Foundation Size (mm) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| L | B | D | ||||||||
| XMY40/φ800-25 | 40 | φ800 | 499 | 40 | 1.0-3.0 | 4554 | 4300×1100×1060 | 3500 | 530 | 1050 |
| XMY50/φ800-25 | 50 | 621 | 50 | 5150 | 4820×1100×1060 | 4020 | ||||
| XMY60/φ800-25 | 60 | 753 | 60 | 9710 | 5340×1100×1060 | 4540 | ||||
| XMY70/φ800-25 | 70 | 875 | 70 | 5760 | 5860×1100×1060 | 5580 | ||||
| XMY80/φ800-25 | 80 | 1000 | 80 | 6860 | 6200×1100×1060 | 5660 | ||||
| XMY80/φ1000-30 | 80 | φ1000 | 1210 | 59 | 1.0-3.0 | 6652 | 7254×1311×1399 | 5857 | 680 | 1400 |
| XMY90/φ1000-30 | 90 | 1350 | 66 | 6848 | 7709×1311×1399 | 6312 | ||||
| XMY100/φ1000-30 | 100 | 1500 | 74 | 7072 | 8229×1311×1399 | 6850 | ||||
| XMY110/φ1000-30 | 110 | 1650 | 81 | 7268 | 8684×1311×1399 | 7305 | ||||
| XMY120/φ1000-30 | 120 | 1800 | 88 | 7464 | 9591×1311×1399 | 7758 | ||||
| XMY130/φ1000-30 | 130 | 1950 | 96 | 7688 | 10111×1311×1399 | 8246 | ||||
| XMY140/φ1000-30 | 140 | 2100 | 103 | 7884 | 10566×1311×1399 | 8735 | ||||
XMZ Series Technical Data
| Model | Area (㎡) | Plate Size (mm) | Filter Chamber Volume (L) | Plate Qty (pcs) | Filtration Pressure (MPa) | Motor Power (kW) | Weight (kg) | Dimensions L×W×H (mm) | Foundation Size (mm) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | B | D | H | |||||||||
| XMZ120-φ1250-U | 120 | φ1250 | 2072 | 55 | 2 | 7.5 | 10480 | 7643×1800×1660 | 5933 | 880 | 1400 | 1035 |
| XMZ150-φ1250-U | 150 | 2627 | 70 | 11530 | 8663×1800×1660 | 6953 | ||||||
| XMZ180-φ1250-U | 180 | 3145 | 84 | 12580 | 9615×1800×1660 | 7905 | ||||||
| XMZ200-φ1250-U | 200 | 3515 | 94 | 13280 | 10295×1800×1660 | 8585 | ||||||
| XMZ220-φ1250-U | 220 | 3848 | 103 | 13980 | 10907×1800×1660 | 9197 | ||||||
| XMZ240-φ1250-U | 240 | 4218 | 113 | 14680 | 11587×1800×1660 | 9877 | ||||||
| XMZ250-φ1250-U | 250 | 4366 | 117 | 15030 | 11859×1800×1660 | 10149 | ||||||
| XMZ250-φ1600-U | 250 | φ1600 | 4387 | 71 | 2 | 11 | 27877 | 10843×2300×2357 | 8430 | 1180 | 2000 | 1557 |
| XMZ300-φ1600-U | 300 | 5265 | 85 | 30713 | 11893×2300×2357 | 9480 | ||||||
| XMZ350-φ1600-U | 350 | 6142 | 99 | 34025 | 12943×2300×2357 | 10530 | ||||||
| XMZ400-φ1600-U | 400 | 7020 | 113 | 37008 | 13993×2300×2357 | 11580 | ||||||
| XMZ450-φ1600-U | 450 | 7897 | 127 | 39982 | 15043×2300×2357 | 12630 | ||||||
| XMZ500-φ1600-U | 500 | 8775 | 141 | 42973 | 16093×2300×2357 | 13680 | ||||||

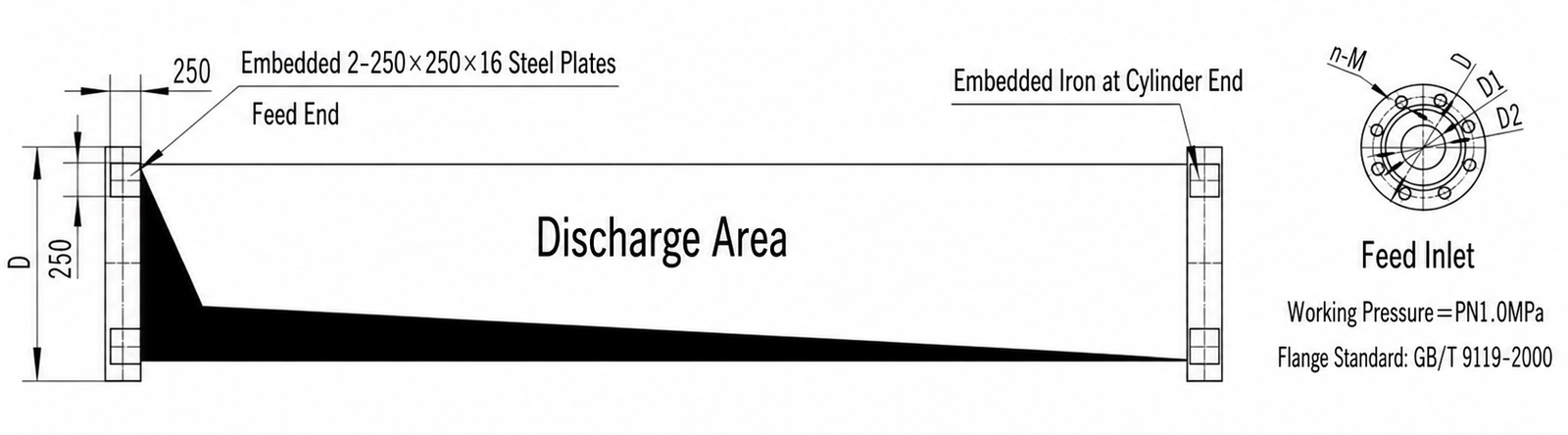

Flange Size
| Type | D | D1 | D2 | n-M |
|---|---|---|---|---|
| 800 | 185 | 145 | 60 | 4-φ18 |
| 1000 | 200 | 180 | 88 | 8-φ18 |
| 1250 | 220 | 180 | 88 | 8-φ18 |
| 1600 | 285 | 240 | 132 | 8-φ23 |
