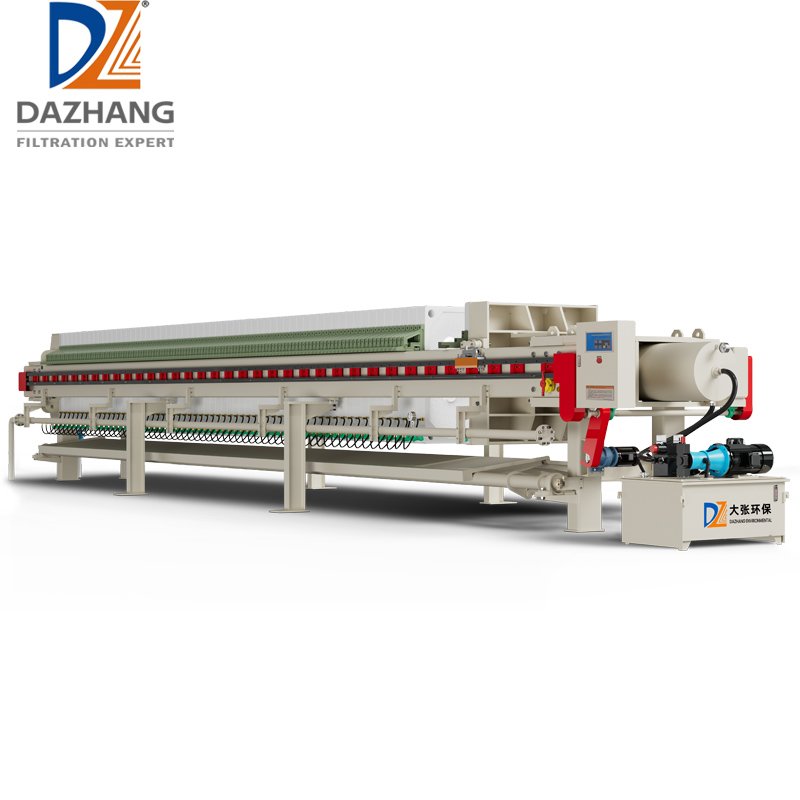

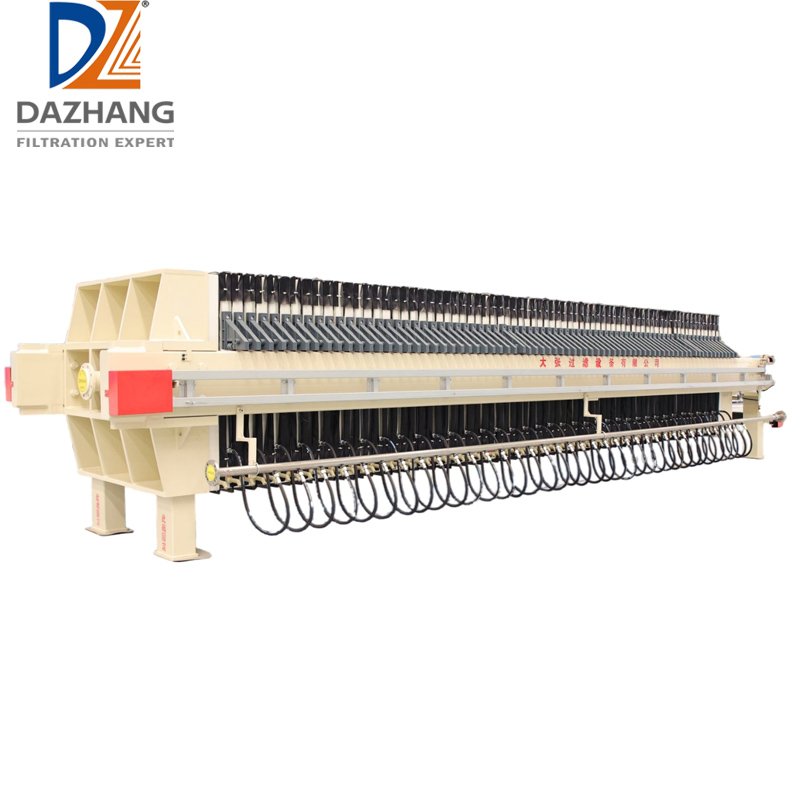

Program-Controlled Automatic High-Pressure Membrane Filter Press
The Dazhang high-pressure program-controlled membrane filter press features internationally leading TPE diaphragm technology. Designed for extreme solid-liquid separation, it significantly improves production efficiency and achieves superior sludge reduction across diverse industrial applications.

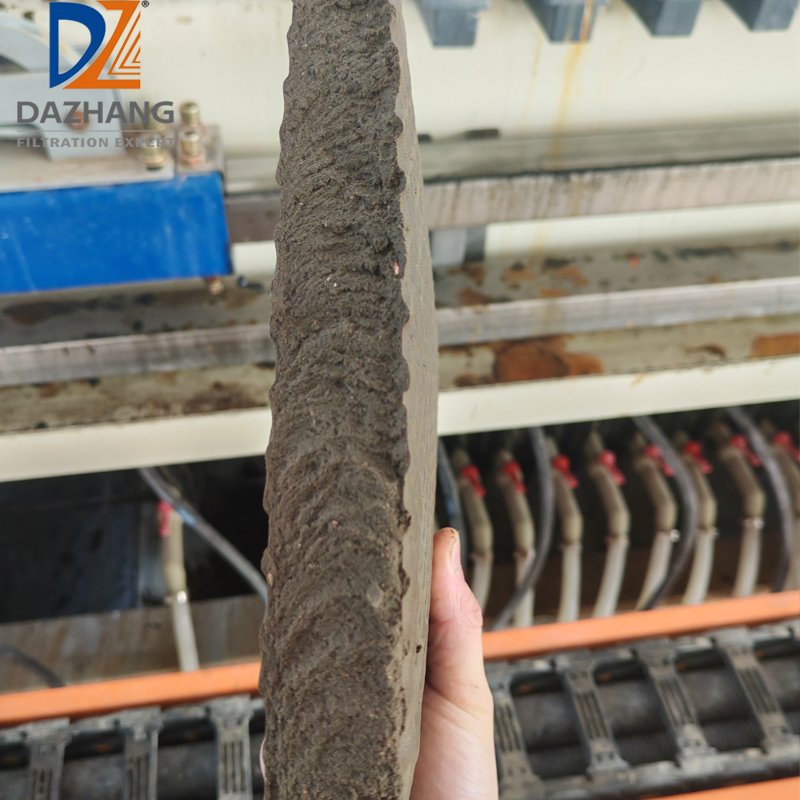

Ultra-Low Cake Moisture
0.8-4.0 MPa high-pressure squeezing reduces moisture to 35%-60%.
High Throughput
With a large chamber capacity, our filter presses ensure efficient high-volume processing
Unmanned Operation
Fully automated discharge and flushing eliminate manual labor.

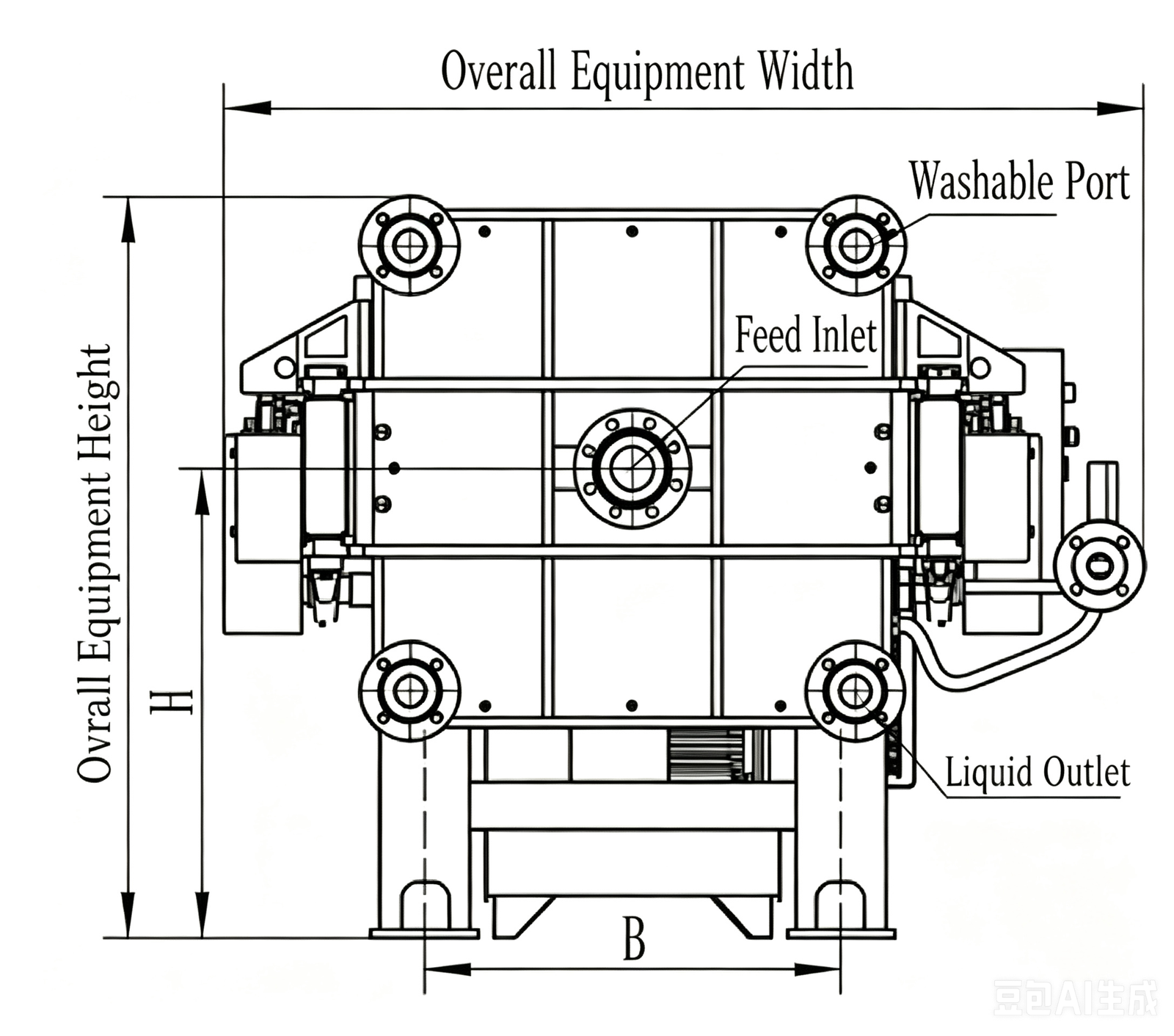

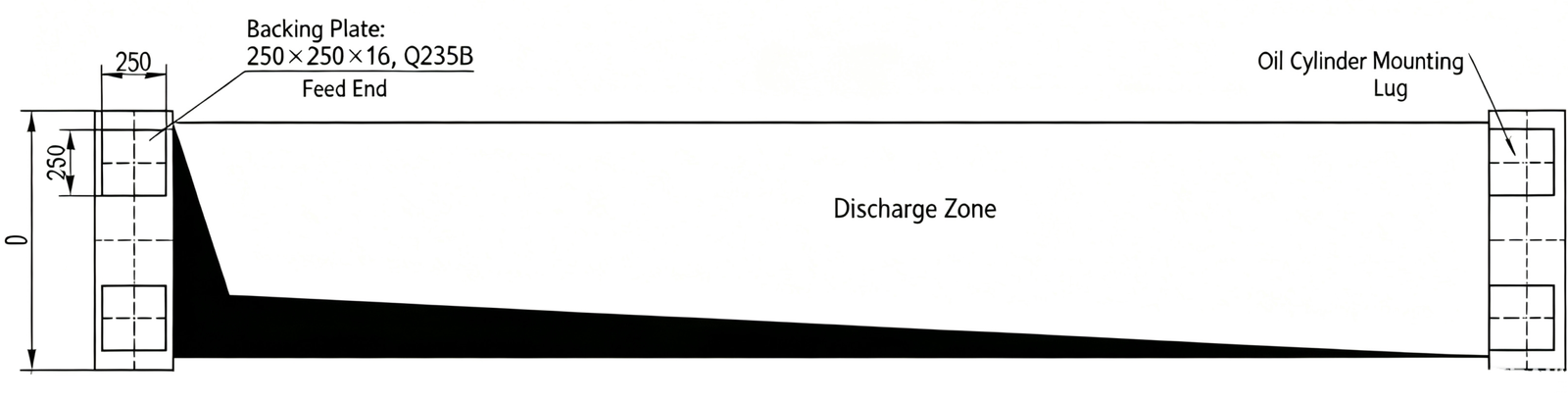

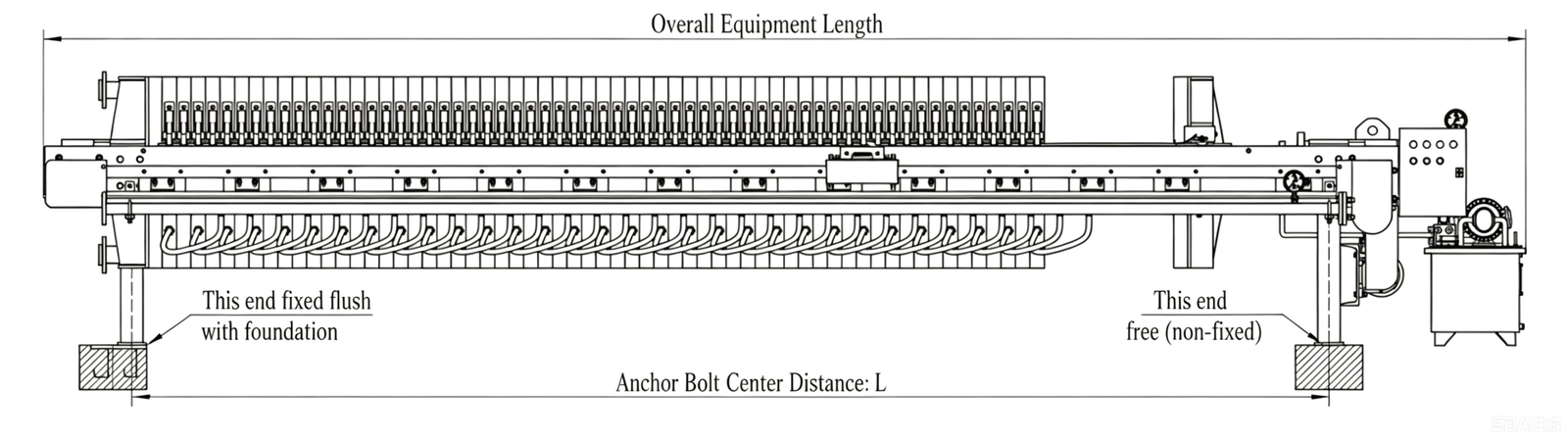

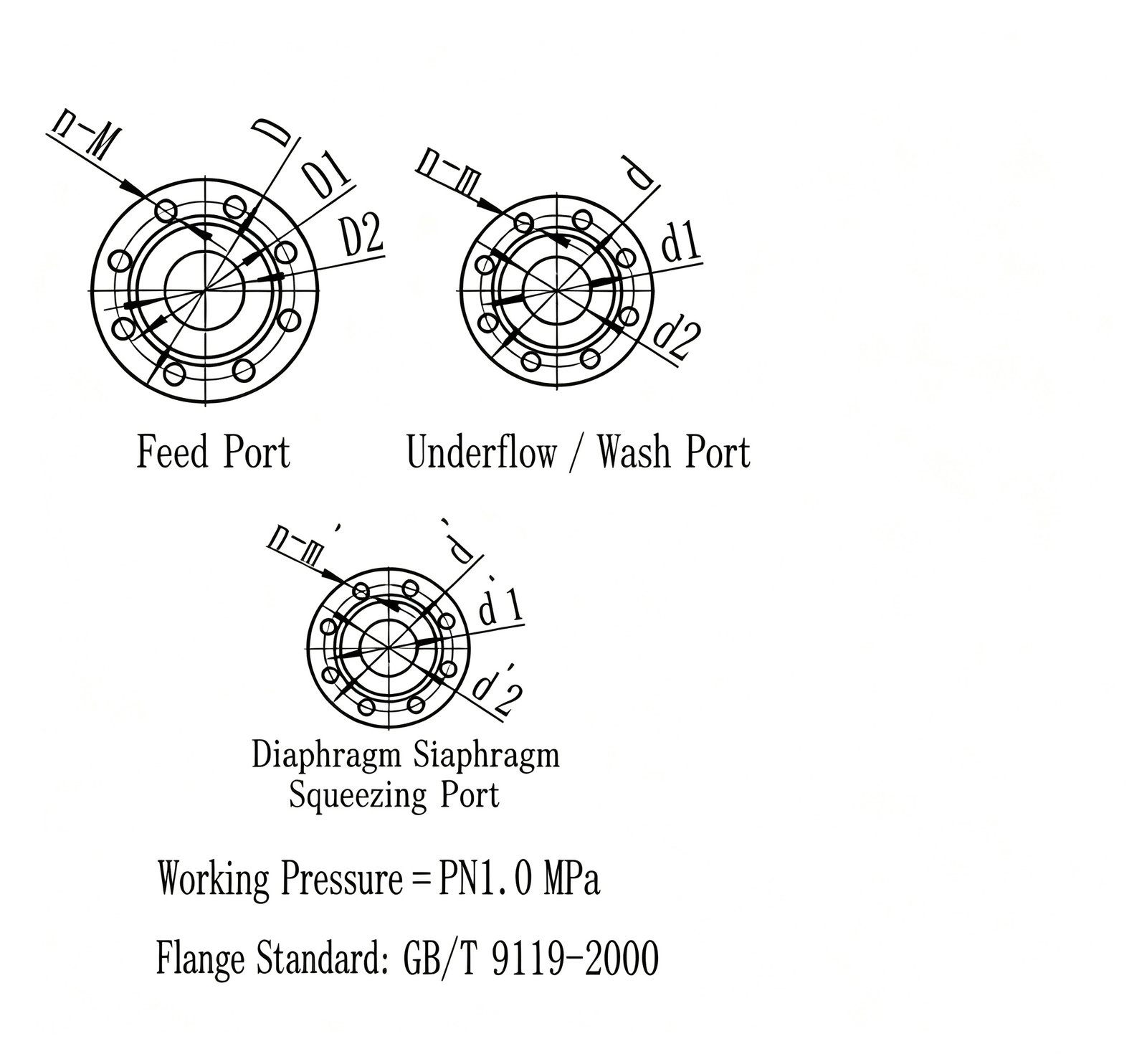

Structural Dimensions & Site Planning
Precise CAD diagrams corresponding to our technical parameters to guide your foundation construction and equipment setup.
Serving Diverse Industrial Applications
Our filter press systems are widely used across multiple industries where efficient dewatering and solid-liquid separation are essential.
| Model | Area (m²) | Plate Size (mm) | Filter Chamber Volume (L) | Plate Qty (pcs) | Filtration Pressure (MPa) | Motor Power (kW) | Weight (kg) | Dimensions LxWxH (mm) | Foundation Size (mm) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | B | D | H | |||||||||
| XG10/630-U | 10 | 630×630 | 157 | 17 | 1 | 2.2 | 1765 | 3295x850x942 | 2294 | 490 | 900 | 627 |
| XG15/630-U | 15 | 235 | 25 | 2038 | 3775x850x942 | 2774 | ||||||
| XG20/630-U | 20 | 314 | 33 | 2311 | 4255x850x942 | 3254 | ||||||
| XG30/630-U | 30 | 471 | 49 | 2858 | 5215x850x942 | 4214 | ||||||
| XG30/870-U | 30 | 870×870 | 498 | 23 | 0.8-4.0 | 4 | 3046 | 3815x1430x1230 | 2920 | 700 | 1270 | 785 |
| XG40/870-U | 40 | 623 | 29 | 3593 | 4200x1430x1230 | 3300 | ||||||
| XG50/870-U | 50 | 789 | 37 | 4057 | 4715x1430x1230 | 3820 | ||||||
| XG60/870-U | 60 | 955 | 45 | 4597 | 5235x1430x1230 | 4340 | ||||||
| XG70/870-U | 70 | 1121 | 53 | 5136 | 5755x1430x1230 | 4860 | ||||||
| XG80/870-U | 80 | 1287 | 61 | 5636 | 6275x1430x1230 | 5380 | 780 | 1400 | 870 | |||
| XG50/1000-U | 50 | 1000×1000 | 776 | 27 | 4 | 4352 | 4385x1570x1380 | 3420 | ||||
| XG2G60/1000-U | 60 | 943 | 33 | 4480 | 4885x1570x1380 | 3850 | ||||||
| XG70/1000-U | 70 | 1109 | 39 | 5263 | 5245x1570x1380 | 4280 | ||||||
| XZG80/1000-U | 80 | 1275 | 45 | 5719 | 5675x1570x1380 | 4710 | ||||||
| XG100/1000-U | 100 | 1608 | 57 | 6555 | 6525x1570x1380 | 5560 | ||||||
| XG120/1000-U | 120 | 1941 | 69 | 7466 | 7375x1570x1380 | 6410 | ||||||
Need Help Selecting the Right Filter Press?
Our engineers will recommend the most suitable model based on your material characteristics, processing capacity, and production requirements.
What You'll Gain
Every filter press is manufactured with premium materials and precision engineering to ensure long-term operational stability.
Automatic Self-Cleaning Systems
Self-cleaning filtration units engineered for continuous, low-maintenance operations.
German-Standard Filter Plates
Precision filter plates built to DIN standards for exceptional high-pressure durability.
Intelligent PLC Control
Automated operation minimizes labor and increases efficiency.

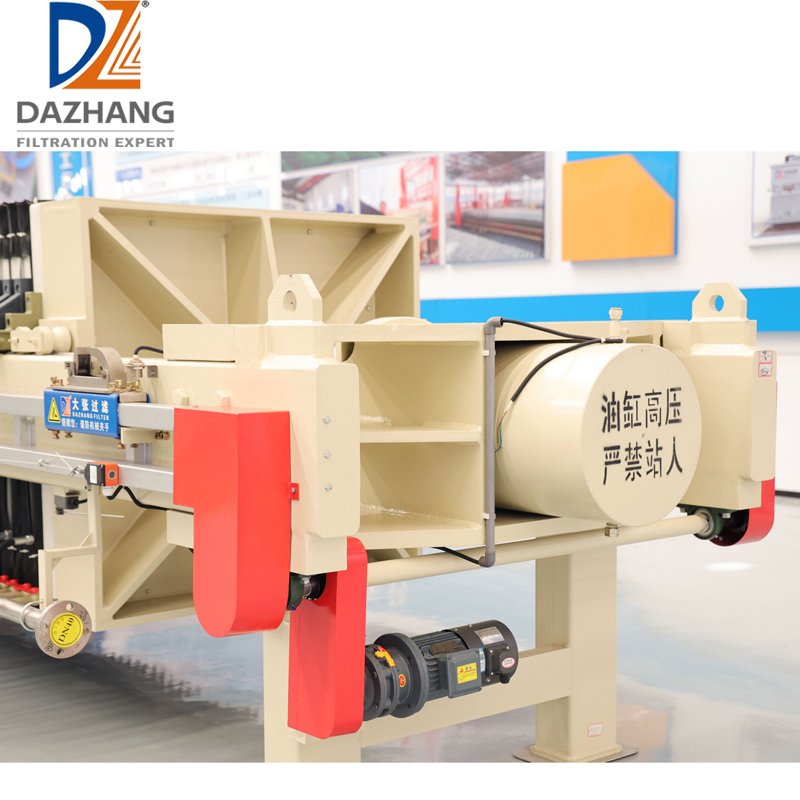

Reliable Hydraulic System
Stable hydraulic performance ensures dependable filtration cycles.
Advanced Manufacturing Capability
From laser cutting to final assembly, every process is carefully controlled to ensure product consistency.
High-Precision CNC Machining
High-precision CNC centers process critical structural components with ultra-tight tolerances, guaranteeing flawless structural integrity and seamless fit.
Automated Robotic Welding
Multi-axis welding robots execute consistent, high-strength welds on complex structures, boosting efficiency while eliminating human error.
Eco-Friendly Spray Painting
Advanced dust-free spray coating ensures uniform surface coverage, superior corrosion resistance, and long-lasting durability.
Rigorous Machine Commissioning
Every unit undergoes comprehensive assembly testing and performance verification under simulated conditions before dispatch to ensure zero-defect delivery.
Our Global Footprint
We actively participate in premier industrial exhibitions across the globe. By communicating face-to-face with engineers and project managers on-site, we continuously refine our filtration solutions to meet the exact demands of local markets.
Certified Manufacturing Excellence
Our products comply with international quality standards and are trusted by customers worldwide.
Comprehensive Industrial Applications
Engineered for highly efficient solid-liquid separation and sludge reduction across diverse and demanding industries.
