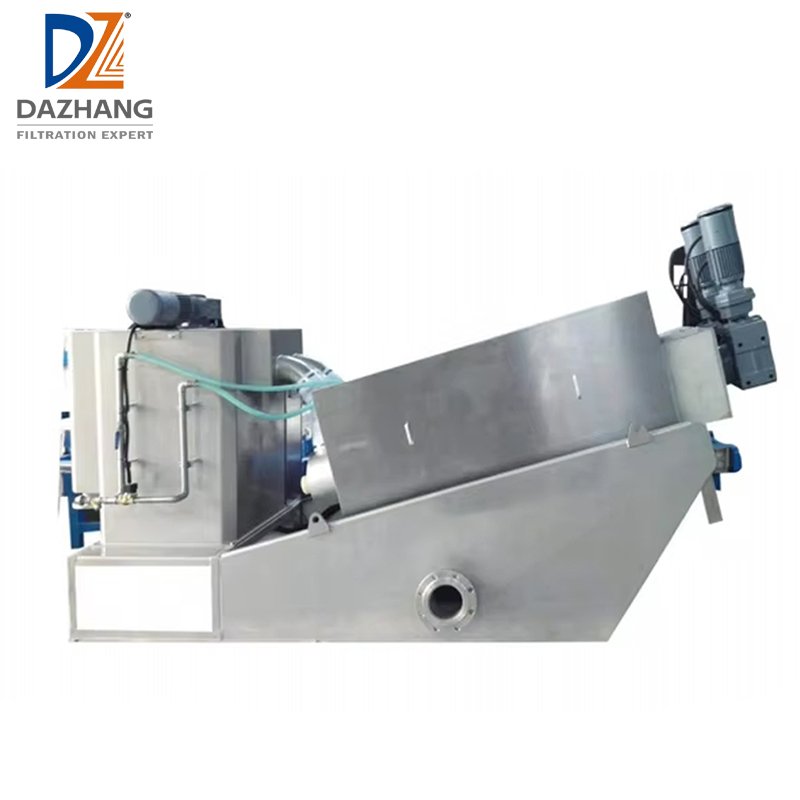

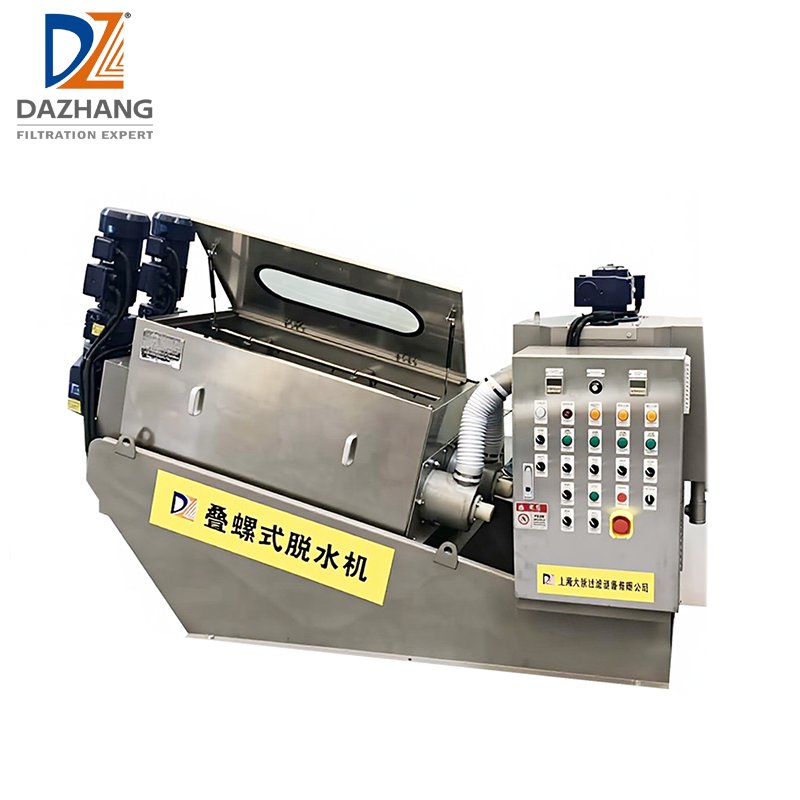

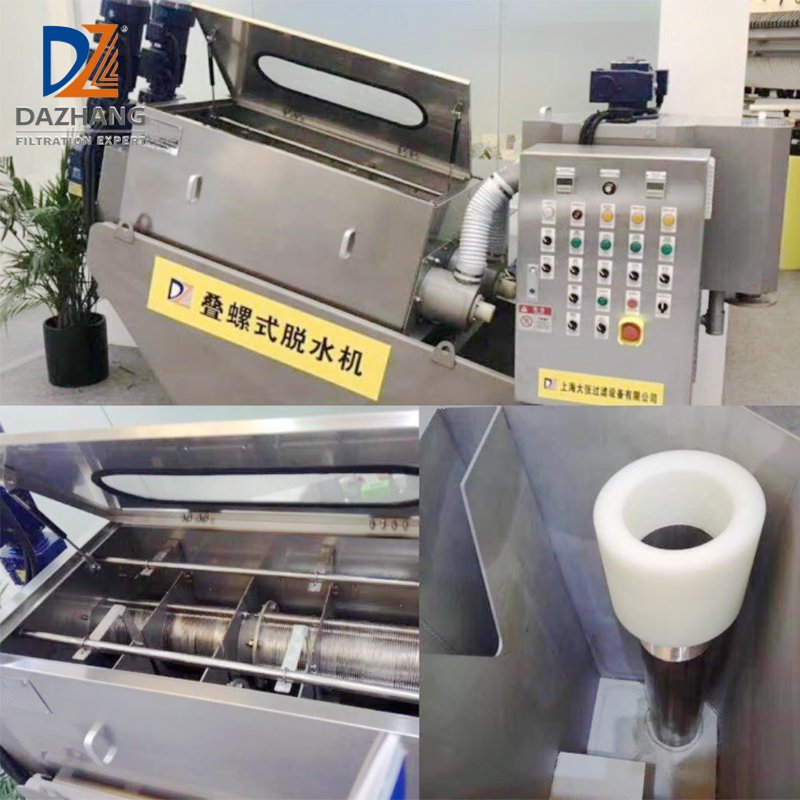

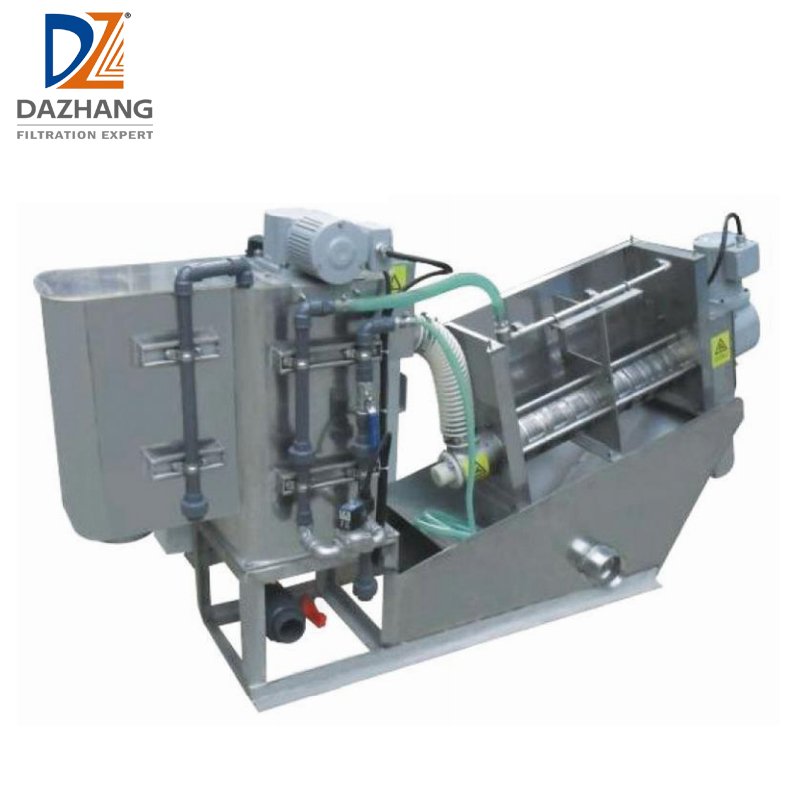

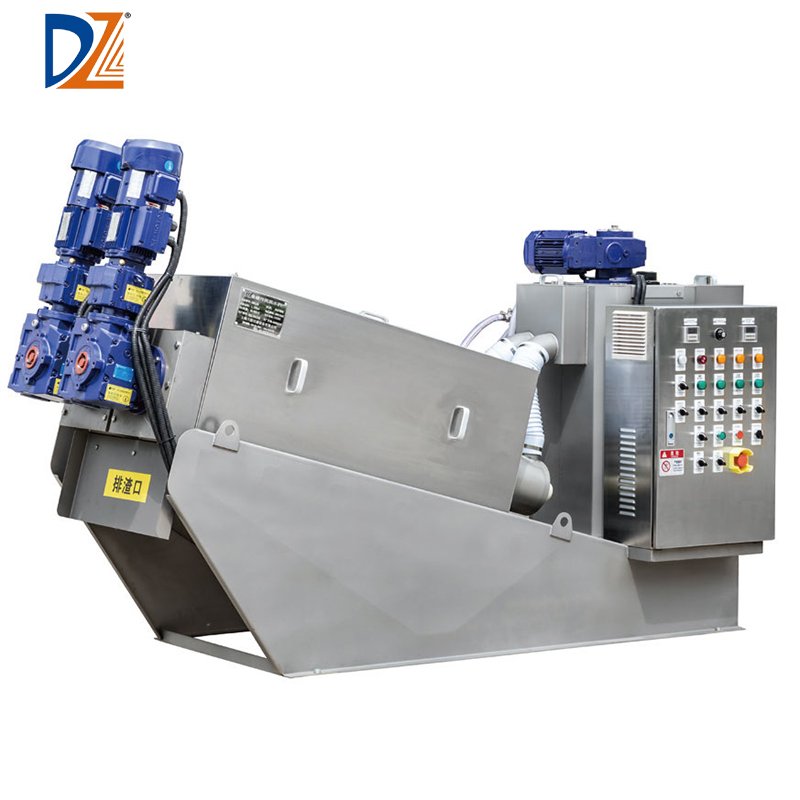

Screw Sludge Dewatering Machine

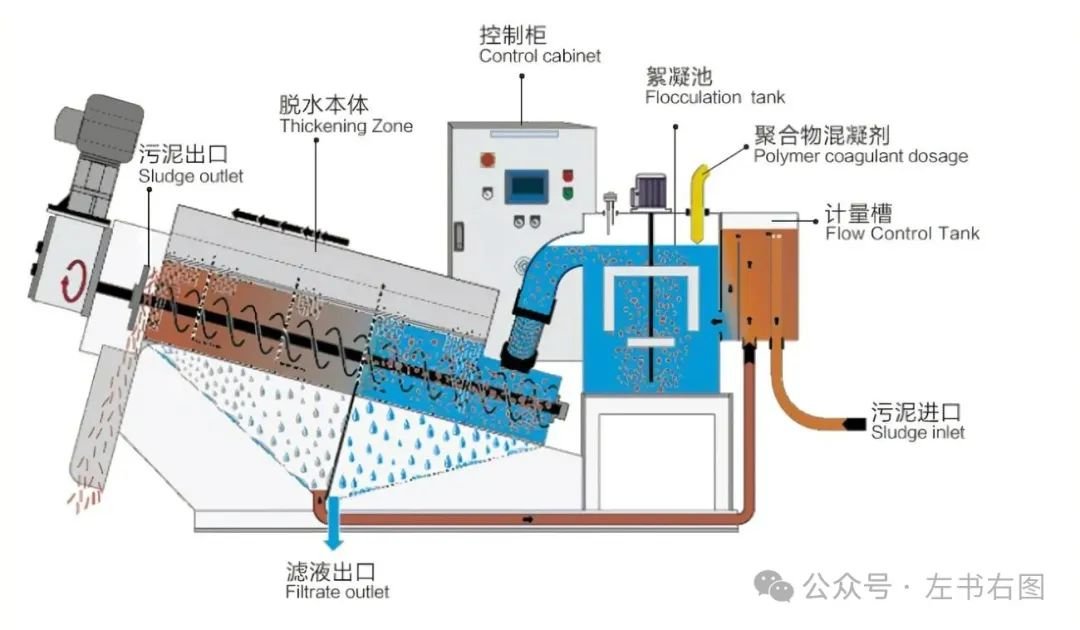

The Screw Sludge Dewatering Machine is designed for continuous sludge thickening and dewatering through screw extrusion technology. Its stacked ring structure provides efficient solid-liquid separation, low energy consumption, and stable operation for municipal wastewater treatment and industrial sludge applications.
Low Energy Consumption
Operates at low speed with reduced power usage.
Screw Extrusion
Uses screw pressure for efficient sludge dewatering.
Thickening & Dewatering
Combines sludge concentration and dewatering processes.
Automatic Operation
Supports continuous and unattended sludge treatment.

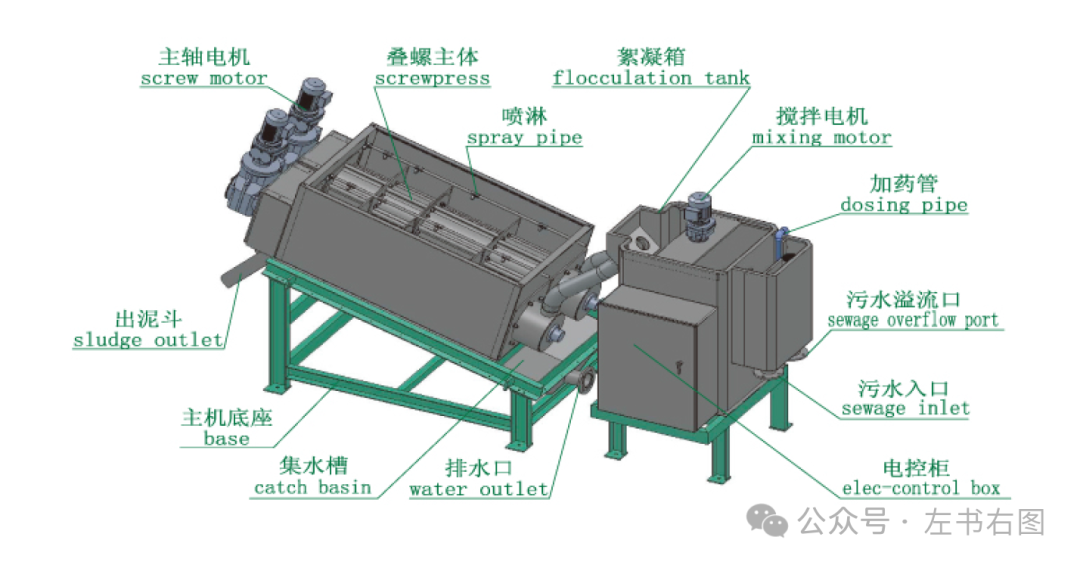

Structural Dimensions & Site Planning
Precise CAD diagrams corresponding to our technical parameters to guide your foundation construction and equipment setup.
Serving Diverse Industrial Applications
Our filter press systems are widely used across multiple industries where efficient dewatering and solid-liquid separation are essential.
| Model | Standard Material | Dry Sludge Capacity (kg-DS/h) | Screw Qty | Screw Power (kW) | Mixing Power (kW) | Screw Spec (mm) | Overall Dimensions L×W×H (mm) | Net Weight (kg) | Running Weight (kg) | Flushing Water Consumption (L/h) | Washing Water Source |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DZDL101 | 304 Stainless Steel | ~5-7 | 1 | 0.18 | 0.18 | Φ100×1150 | 1830×760×1040 | 205 | 315 | 24 | Running water (No high pressure required) |
| DZDL131 | 304 Stainless Steel | ~10-14 | 1 | 0.18 | 0.18 | Φ130×1150 | 2000×900×1300 | 250 | 250 | 24 | |
| DZDL201 | 304 Stainless Steel | ~15-20 | 1 | 0.37 | 0.55 | Φ200×1570 | 2500×800×1270 | 420 | 395 | 32 | |
| DZDL202 | 304 Stainless Steel | ~30-40 | 2 | 0.37×2 | 0.55 | Φ200×1570 | 2580×1045×1270 | 470 | 540 | 64 | |
| DZDL203 | 304 Stainless Steel | ~45-60 | 3 | 0.37×3 | 0.55 | Φ200×1570 | 2580×1350×1270 | 690 | 1030 | 96 | |
| DZDL301 | 304 Stainless Steel | ~50-70 | 1 | 0.75 | 0.55 | Φ300×2270 | 3255×985×1750 | 900 | 1300 | 40 | |
| DZDL302 | 304 Stainless Steel | ~100-140 | 2 | 0.75×2 | 0.75 | Φ300×2270 | 3455×1300×1750 | 1350 | 2000 | 80 | |
| DZDL303 | 304 Stainless Steel | ~15-210 | 3 | 0.75×3 | 1.1 | Φ300×2270 | 3615×1690×1750 | 1880 | 2700 | 120 | |
| DZDL304 | 304 Stainless Steel | ~200-280 | 4 | 0.75×4 | 1.1 | Φ300×2270 | 3900×2110×1950 | 2500 | 3600 | 160 | |
| DZDL351 | 304 Stainless Steel | ~100-120 | 1 | 1.1 | 0.75 | Φ350×2800 | 4140×1160×2300 | 1100 | 2000 | 70 | |
| DZDL352 | 304 Stainless Steel | ~200-240 | 2 | 1.1×2 | 1.1 | Φ350×2800 | 4250×1550×2300 | 2100 | 3250 | 140 | |
| DZDL353 | 304 Stainless Steel | ~300-360 | 3 | 1.1×3 | 1.1 | Φ350×2800 | 4520×1965×2300 | 3100 | 4600 | 210 | |
| DZDL354 | 304 Stainless Steel | ~400-480 | 4 | 1.1×4 | 1.1×2 | Φ350×2800 | 4700×2505×2300 | 4100 | 5700 | 280 | |
| DZDL401 | 304 Stainless Steel | ~130-160 | 1 | 1.5 | 1.1 | Φ400×3600 | 5200×1400×2560 | 3000 | 4800 | 80 | |
| DZDL402 | 304 Stainless Steel | ~260-320 | 2 | 1.5×2 | 1.1 | Φ400×3600 | 5200×1880×2560 | 4500 | 6500 | 160 | |
| DZDL403 | 304 Stainless Steel | ~270-450 | 3 | 1.5×3 | 1.1×2 | Φ400×3600 | 5200×2525×2560 | 5500 | 8000 | 240 | |
| DZDL404 | 304 Stainless Steel | ~390-480 | 4 | 1.5×4 | 1.1×2 | Φ400×3600 | 5250×3105×2560 | 7000 | 9500 | 320 |
