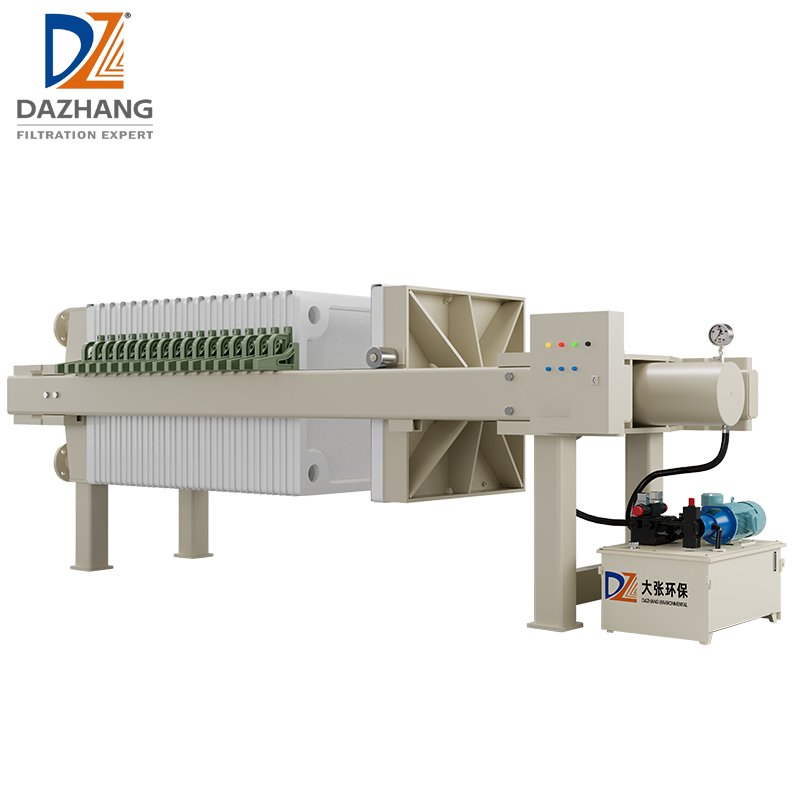

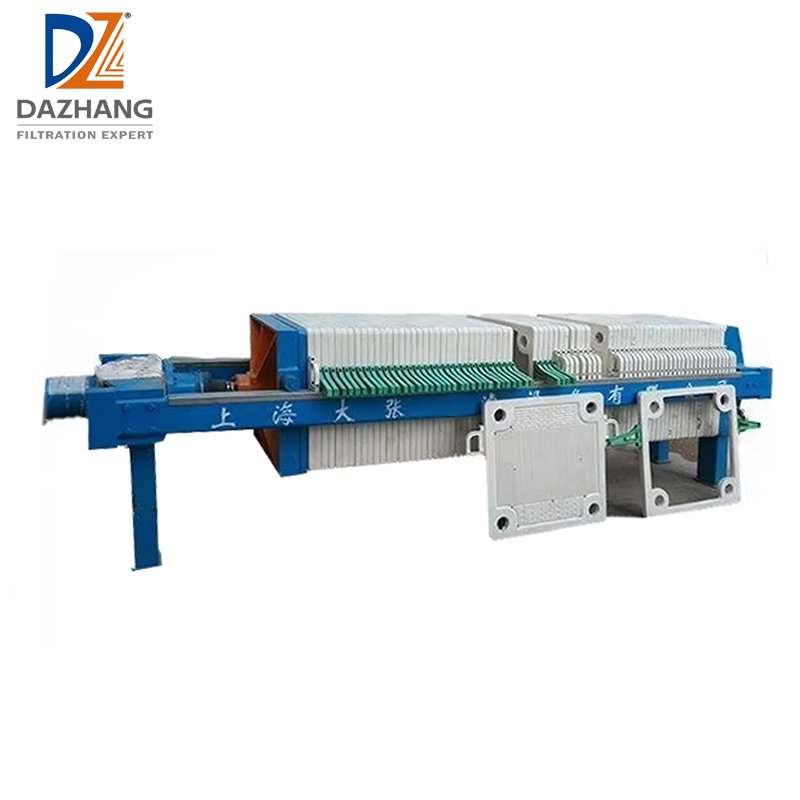

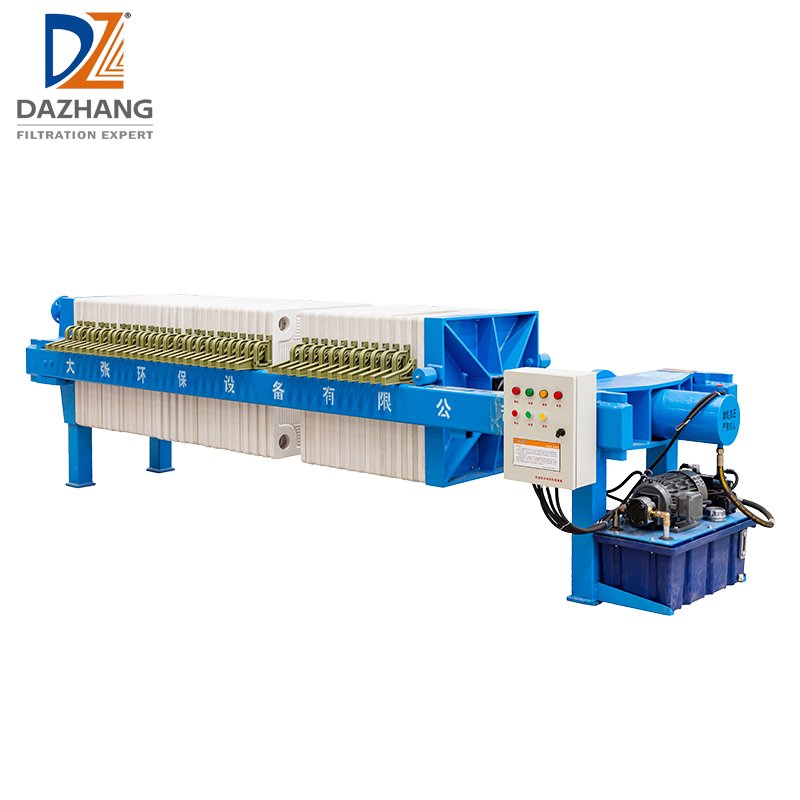

Hydraulic Plate and Frame Filter Press

The Hydraulic Plate and Frame Filter Press is designed for high-precision batch filtration using a reliable hydraulic closing system. It provides excellent filtrate clarity, stable operating performance, and flexible configurations, making it ideal for fine filtration applications in chemical processing, pharmaceuticals, food, beverages, and other industrial sectors requiring high filtration accuracy.

Hydraulic Closing

Hydraulic system provides stable and secure plate compression.

Precision Filtration

Produces high-quality filtrate with excellent clarity.

Flexible Configuration

Available in various sizes and filtration capacities.

Easy Maintenance

Simple design enables quick cleaning and servicing.

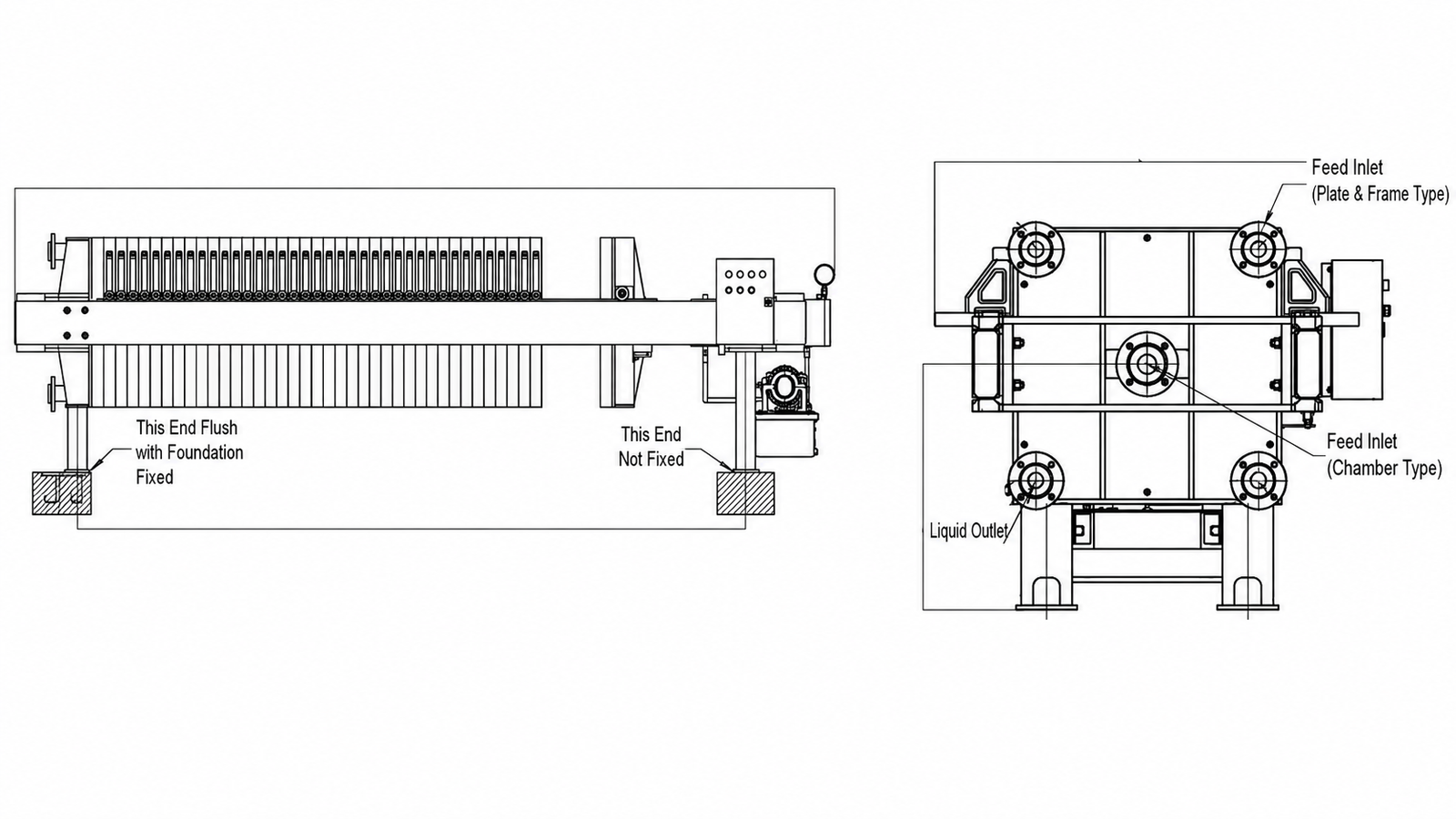

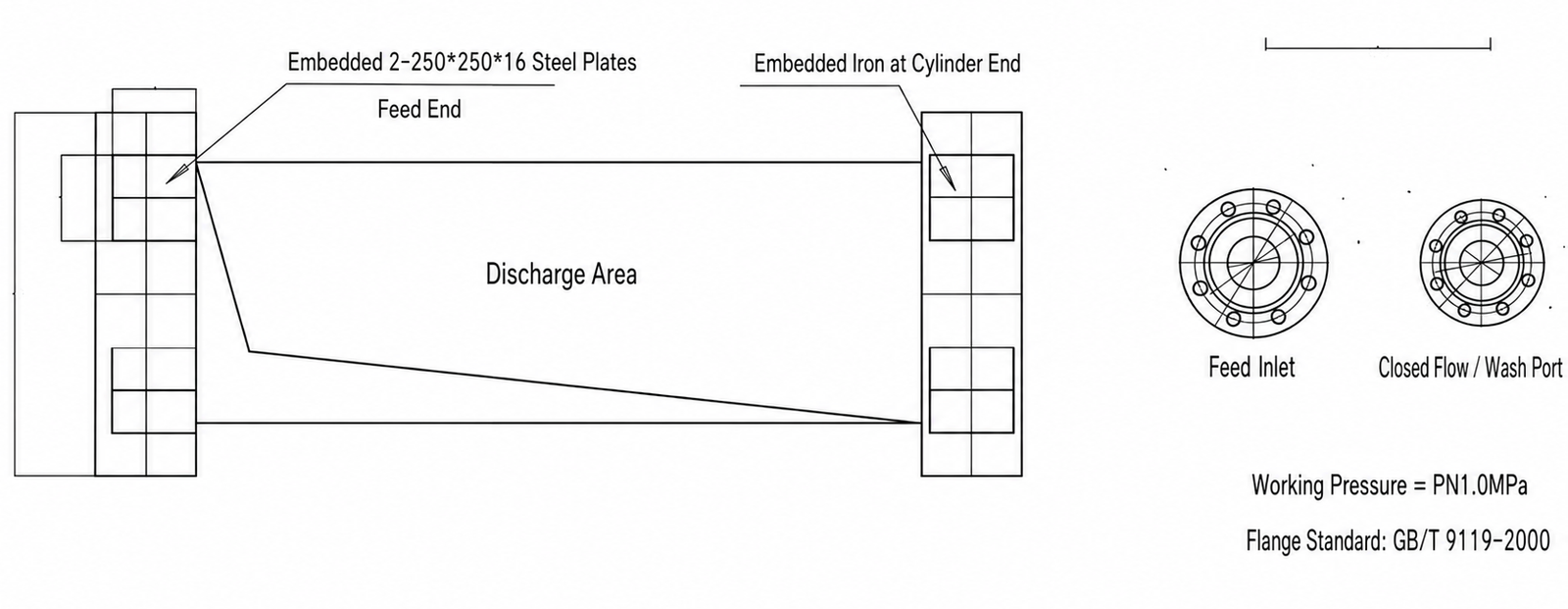

Structural Dimensions & Site Planning

Precise CAD diagrams corresponding to our technical parameters to guide your foundation construction and equipment setup.

Serving Diverse Industrial Applications

Our filter press systems are widely used across multiple industries where efficient dewatering and solid-liquid separation are essential.

Model	Area (㎡)	Plate Size (mm)	Filter Chamber Volume (L)	Plate Qty (pcs)	Frame Qty (pcs)	Filtration Pressure (MPa)	Motor Power (kW)	Weight (kg)	Dimensions L×W×H (mm)	Foundation Size (mm)
Model	Area (㎡)	Plate Size (mm)	Filter Chamber Volume (L)	Plate Qty (pcs)	Frame Qty (pcs)	Filtration Pressure (MPa)	Motor Power (kW)	Weight (kg)	Dimensions L×W×H (mm)	L	B	D	H	C
BY4/450-U	4	500×500	60	9	10	≤0.5	2.2	860	2080×800×900	1570	390	800	560	450
BY6/450-U	6		91	14	15			910	2380×800×900	1870
BY8/450-U	8		121	19	20			960	2680×800×900	2170
BY10/450-U	10		151	24	25			1010	2980×800×900	2470
BY12/450-U	12		182	29	30			1060	3280×800×900	2770
BY15/450-U	15		225	36	37			1130	3700×800×900	3190
BY16/450-U	16		243	39	40			1160	3880×800×900	3370
BY15/630-U	15	700×700	226	18	19	≤0.5	2.2	1725	2840×1000×1060	2170	560	1110	700	485
BY20/630-U	20		297	24	25			1993	3200×1000×1060	2530
BY30/630-U	30		452	37	38			2360	3980×1000×1060	3310
BY40/630-U	40		595	49	50			2788	4800×1000×1060	4130
BY30/890-U	30	890×890	524	23	24	≤0.5	2.2	2580	3740×1385×1250	2750	700	1270	759	480
BY40/890-U	40		677	30	31			2925	4220×1385×1250	3240
BY50/890-U	50		852	38	39			3318	4880×1385×1250	3890
BY60/890-U	60		1027	46	47			3712	5440×1385×1250	4450
BY70/890-U	70		1201	54	55			4106	6000×1385×1250	5010
BY80/890-U	80		1376	62	63			4561	6560×1385×1250	5570

Need Help Selecting the Right Filter Press?

Our engineers will recommend the most suitable model based on your material characteristics, processing capacity, and production requirements.

What You'll Gain

Every filter press is manufactured with premium materials and precision engineering to ensure long-term operational stability.

Automatic Self-Cleaning Systems

Self-cleaning filtration units engineered for continuous, low-maintenance operations.

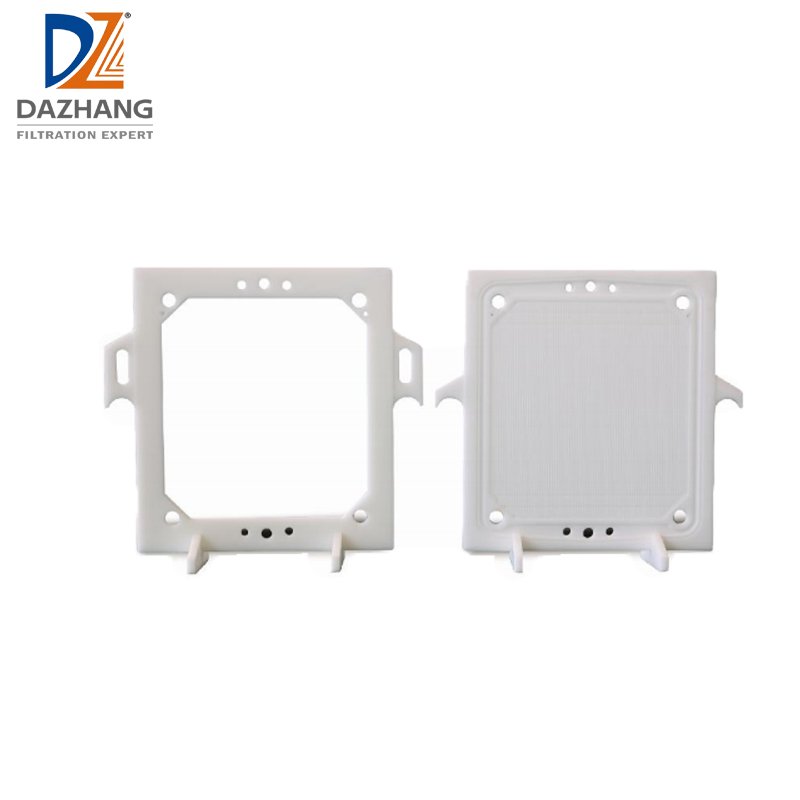

German-Standard Filter Plates

Precision filter plates built to DIN standards for exceptional high-pressure durability.

Intelligent PLC Control

Automated operation minimizes labor and increases efficiency.

Reliable Hydraulic System

Stable hydraulic performance ensures dependable filtration cycles.

Advanced Manufacturing Capability

From laser cutting to final assembly, every process is carefully controlled to ensure product consistency.

High-Precision CNC Machining

High-precision CNC centers process critical structural components with ultra-tight tolerances, guaranteeing flawless structural integrity and seamless fit.

Automated Robotic Welding

Multi-axis welding robots execute consistent, high-strength welds on complex structures, boosting efficiency while eliminating human error.

Eco-Friendly Spray Painting

Advanced dust-free spray coating ensures uniform surface coverage, superior corrosion resistance, and long-lasting durability.

Rigorous Machine Commissioning

Every unit undergoes comprehensive assembly testing and performance verification under simulated conditions before dispatch to ensure zero-defect delivery.
