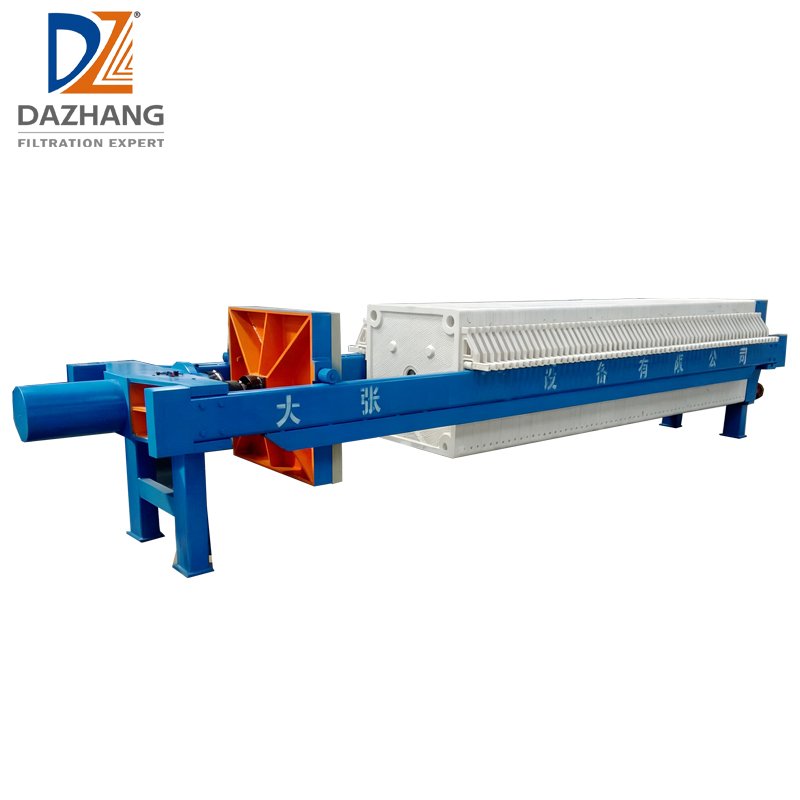

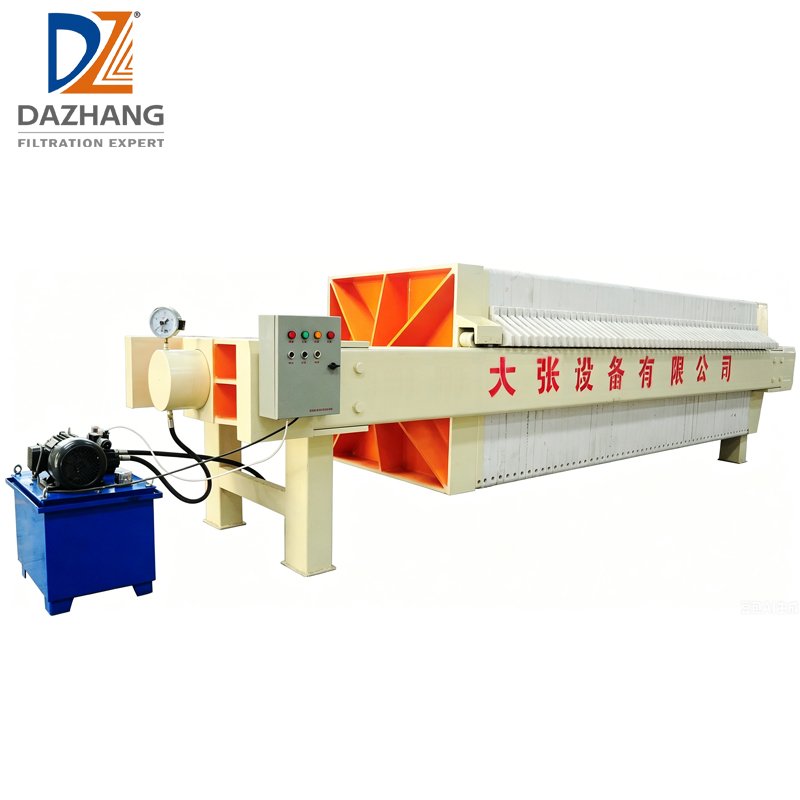

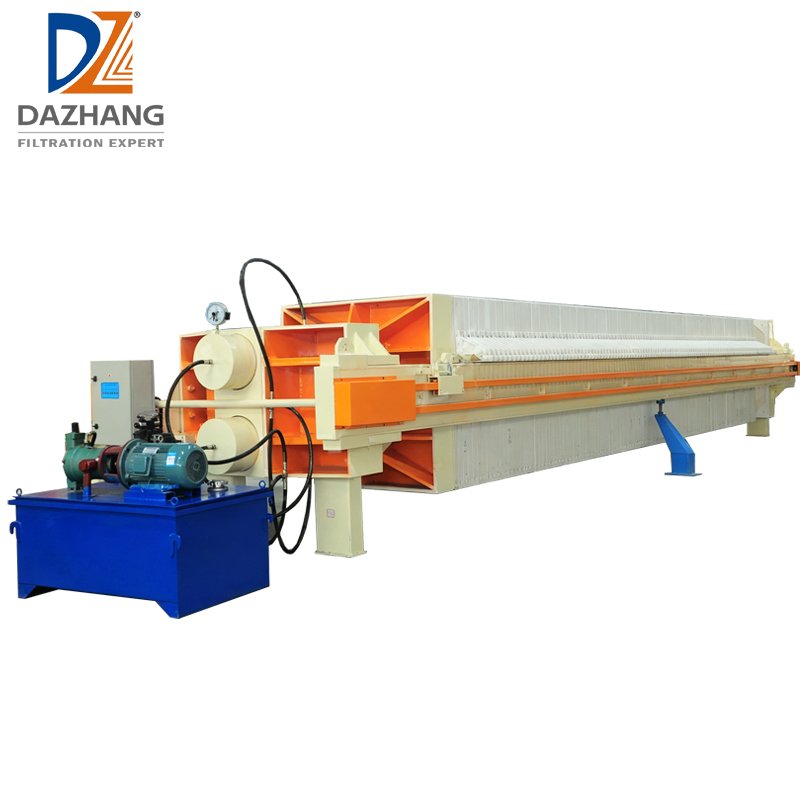

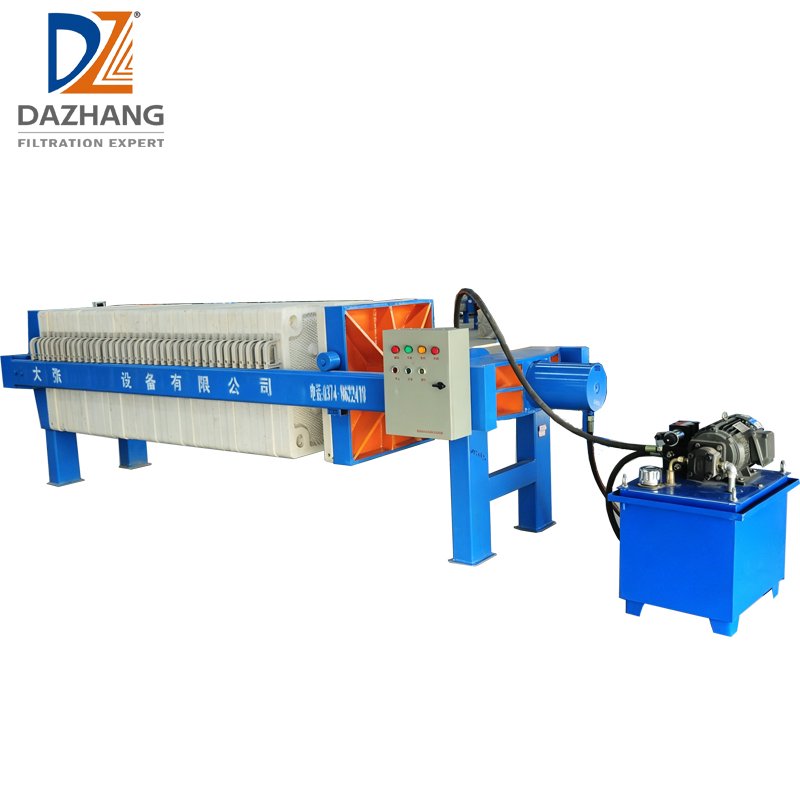

Hydraulic Chamber Filter Press
The Hydraulic Chamber Filter Press is a reliable solid-liquid separation system designed for medium to large-scale filtration applications. Powered by a hydraulic closing system, it provides stable compression force, consistent filtration performance, and efficient filter cake formation. Suitable for processing a wide range of industrial slurries, it delivers dependable operation while reducing labor intensity and maintenance costs.
Hydraulic Closing
Stable hydraulic compression for reliable filtration cycles.
Efficient Filtration
High solid-liquid separation efficiency with clear filtrate.
Flexible Configuration
Multiple plate sizes and automation options available.
Heavy-Duty Structure
Reinforced frame designed for continuous industrial operation.

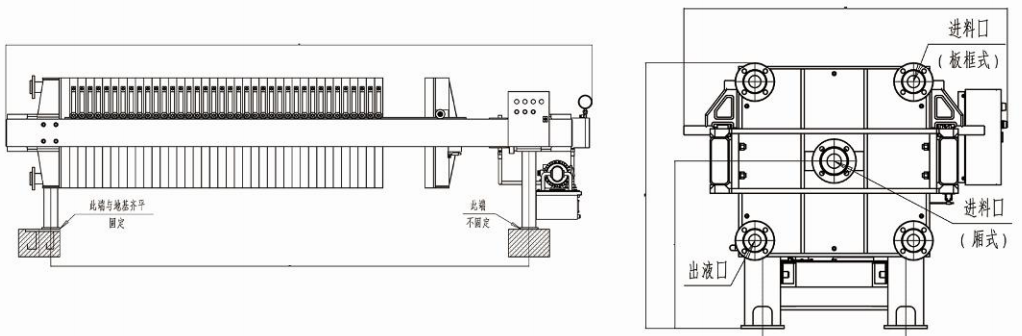

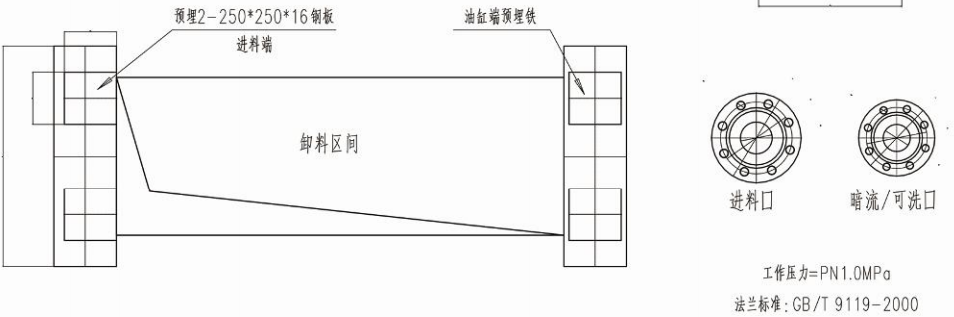

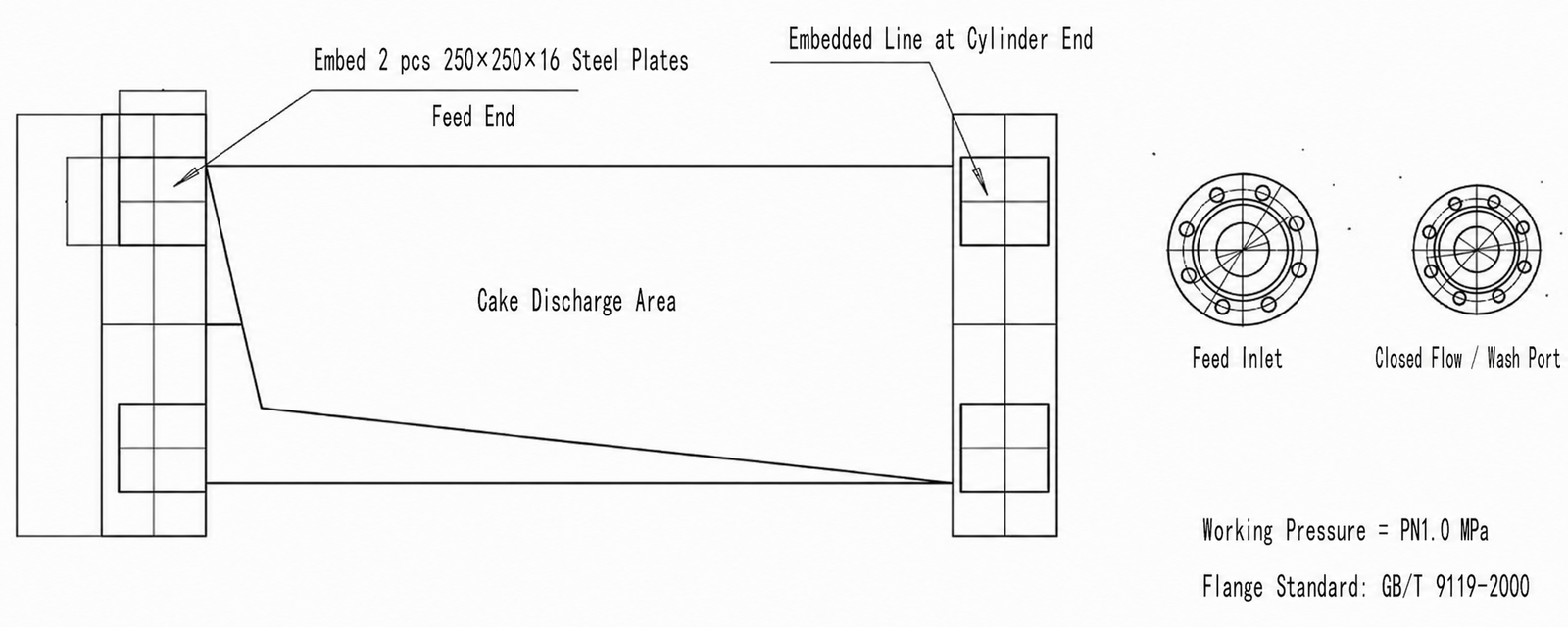

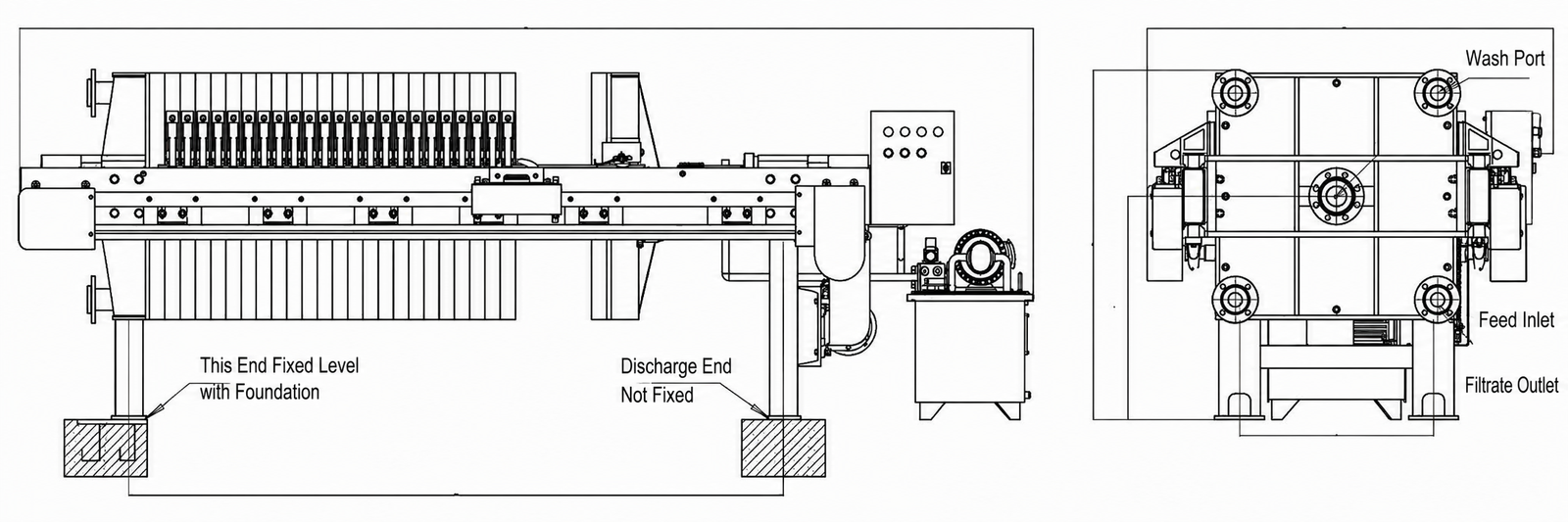

Structural Dimensions & Site Planning
Precise CAD diagrams corresponding to our technical parameters to guide your foundation construction and equipment setup.
Serving Diverse Industrial Applications
Our filter press systems are widely used across multiple industries where efficient dewatering and solid-liquid separation are essential.
| Model | Area (㎡) | Plate Size (mm) | Filter Chamber Volume (L) | Plate Qty (pcs) | Filtration Pressure (MPa) | Motor Power (kW) | Weight (kg) | Dimensions L×W×H (mm) | Foundation Size (mm) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | B | D | H | |||||||||
| XY4/450-U | 4 | 500×500 | 60 | 9 | ≥0.6 | 2.2 | 860 | 1950x700x900 | 1450 | 390 | 700 | 560 |
| XY6/450-U | 6 | 91 | 14 | 910 | 2200x700x900 | 1700 | ||||||
| XY8/450-U | 8 | 121 | 19 | 960 | 2450x700x900 | 1950 | ||||||
| XY10/450-U | 10 | 151 | 24 | 1010 | 2700x700x900 | 2200 | ||||||
| XY12/450-U | 12 | 182 | 29 | 1060 | 2950x700x900 | 2450 | ||||||
| XY15/450-U | 15 | 225 | 36 | 1130 | 3300x700x900 | 2800 | ||||||
| XY16/450-U | 16 | 243 | 39 | 1160 | 3450x700x900 | 2950 | ||||||
| XY15/630-U | 15 | 700×700 | 226 | 18 | ≥0.6 | 2.2 | 1725 | 2640x900x1060 | 1972 | 560 | 910 | 700 |
| XY20/630-U | 20 | 297 | 24 | 1993 | 2940x900x1060 | 2272 | ||||||
| XY30/630-U | 30 | 452 | 37 | 2360 | 3590x900x1060 | 2922 | ||||||
| XY40/630-U | 40 | 595 | 49 | 2788 | 4300x900x1060 | 3622 | ||||||
| XY30/800-U | 30 | 800×800 | 460 | 28 | ≥0.6 | 2.2 | 2170 | 3700x1200x1160 | 2880 | 600 | 900 | 780 |
| XY40/800-U | 40 | 595 | 38 | 2450 | 4300x1200x1160 | 3480 | ||||||
| XY50/800-U | 50 | 749 | 47 | 2700 | 4840x1200x1160 | 4020 | ||||||
| XY60/800-U | 60 | 902 | 57 | 2980 | 5440x1200x1160 | 4620 | ||||||
| XY70/800-U | 70 | 1056 | 67 | 3250 | 6040x1200x1160 | 5220 | ||||||
| XY30/870-U | 30 | 870×870 | 460 | 23 | ≥0.6 | 2.2 | 2580 | 3330x1350x1250 | 2360 | 700 | 1270 | 785 |
| XY40/870-U | 40 | 595 | 30 | 2925 | 3420x1350x1250 | 2750 | ||||||
| XY50/870-U | 50 | 748 | 38 | 3318 | 4260x1350x1250 | 3290 | ||||||
| XY60/870-U | 60 | 902 | 46 | 3712 | 4700x1350x1250 | 3730 | ||||||
| XY70/870-U | 70 | 1056 | 54 | 4106 | 5140x1350x1250 | 4170 | ||||||
| XY80/870-U | 80 | 1210 | 62 | 4561 | 5580x1350x1250 | 4610 | ||||||
Need Help Selecting the Right Filter Press?
Our engineers will recommend the most suitable model based on your material characteristics, processing capacity, and production requirements.
What You'll Gain
Every filter press is manufactured with premium materials and precision engineering to ensure long-term operational stability.
Automatic Self-Cleaning Systems
Self-cleaning filtration units engineered for continuous, low-maintenance operations.

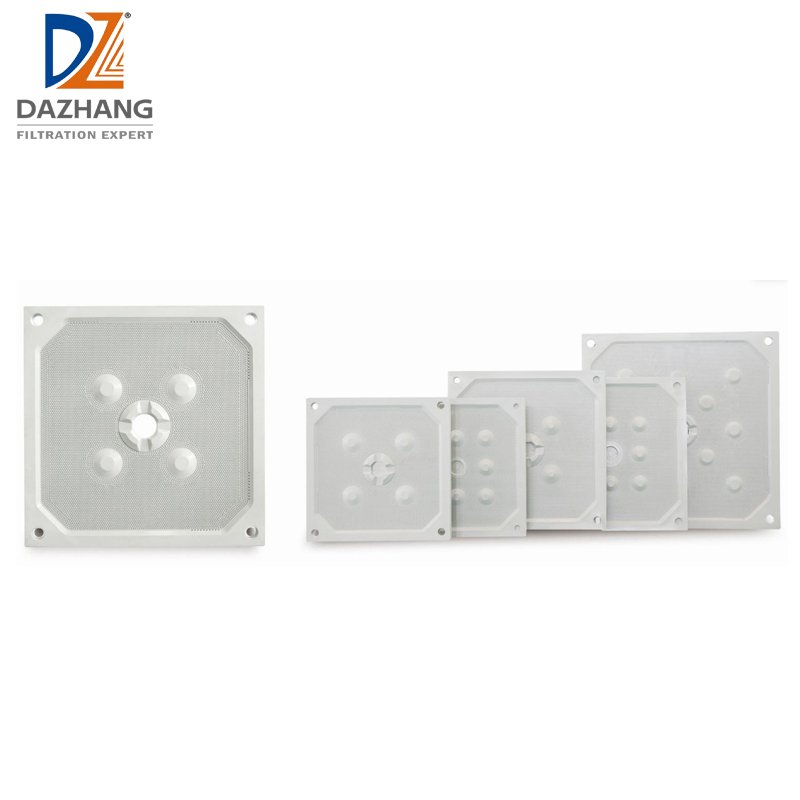

German-Standard Filter Plates
Precision filter plates built to DIN standards for exceptional high-pressure durability.
Intelligent PLC Control
Automated operation minimizes labor and increases efficiency.
Reliable Hydraulic System
Stable hydraulic performance ensures dependable filtration cycles.
Advanced Manufacturing Capability
From laser cutting to final assembly, every process is carefully controlled to ensure product consistency.
High-Precision CNC Machining
High-precision CNC centers process critical structural components with ultra-tight tolerances, guaranteeing flawless structural integrity and seamless fit.
Automated Robotic Welding
Multi-axis welding robots execute consistent, high-strength welds on complex structures, boosting efficiency while eliminating human error.
Eco-Friendly Spray Painting
Advanced dust-free spray coating ensures uniform surface coverage, superior corrosion resistance, and long-lasting durability.
Rigorous Machine Commissioning
Every unit undergoes comprehensive assembly testing and performance verification under simulated conditions before dispatch to ensure zero-defect delivery.
Our Global Footprint
We actively participate in premier industrial exhibitions across the globe. By communicating face-to-face with engineers and project managers on-site, we continuously refine our filtration solutions to meet the exact demands of local markets.
Certified Manufacturing Excellence
Our products comply with international quality standards and are trusted by customers worldwide.
Comprehensive Industrial Applications
Engineered for highly efficient solid-liquid separation and sludge reduction across diverse and demanding industries.
