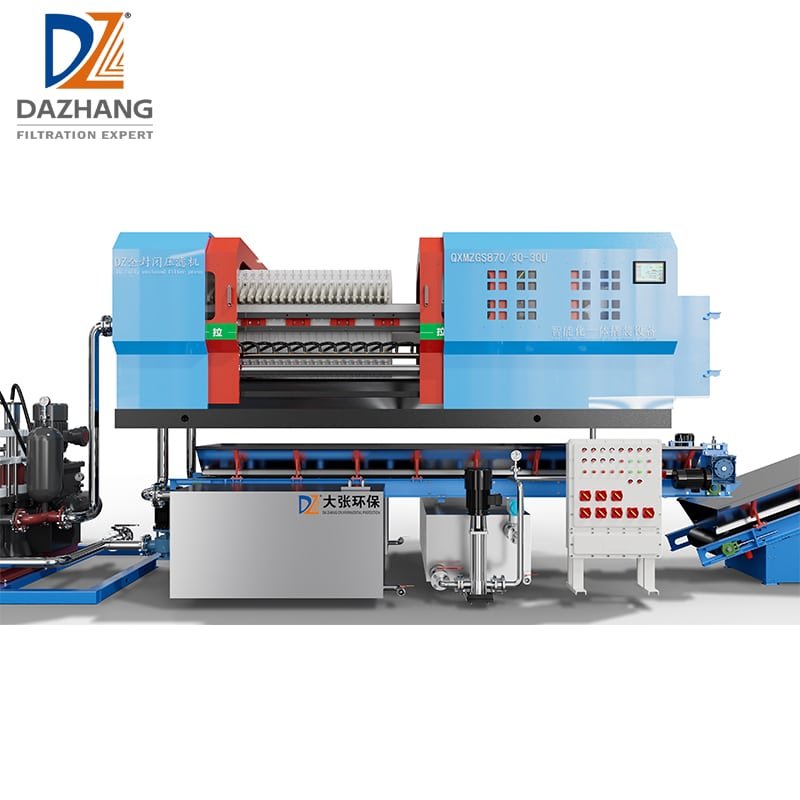

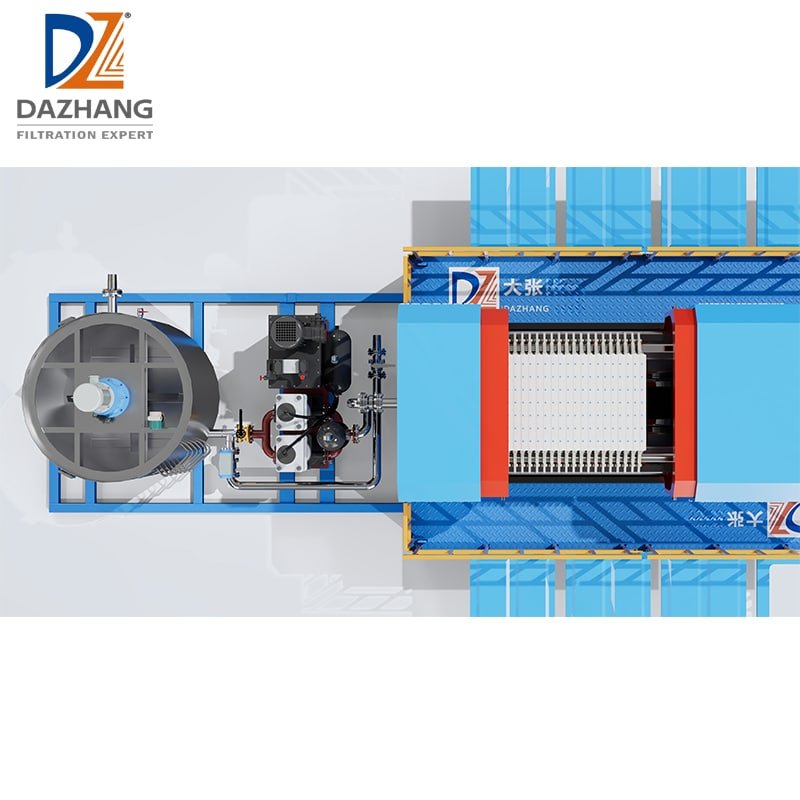

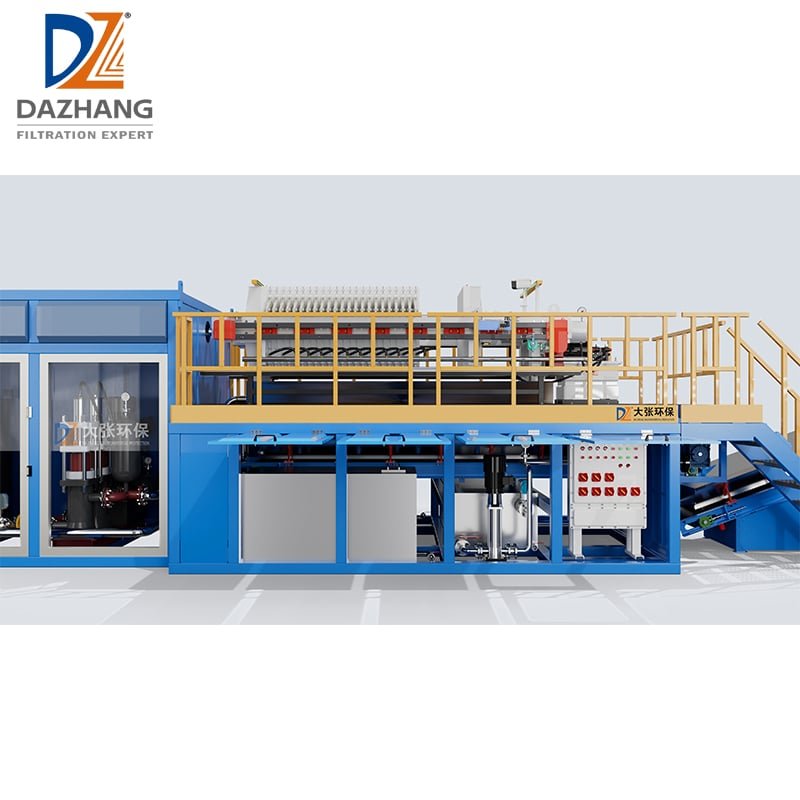

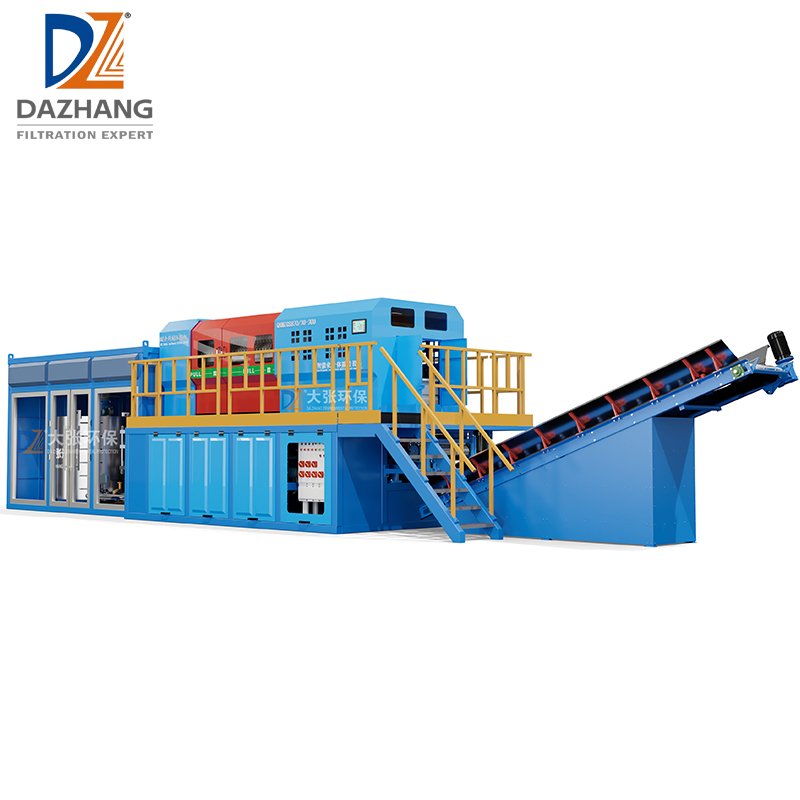

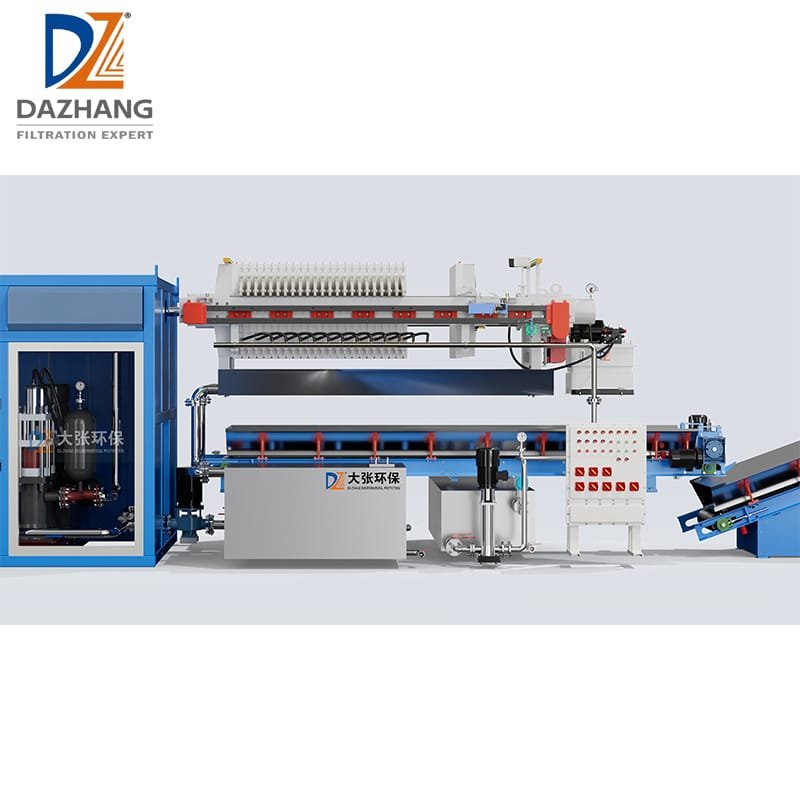

Skid-Mounted Filtration System
The Skid-Mounted Filtration System is a modular filtration solution integrating filter units and related components on a single skid platform. It provides compact design, easy installation, and reliable filtration performance for industrial water treatment, process filtration, and customized filtration projects.
Reliable Operation
Provides stable performance for industrial filtration.
Compact Structure
Saves space with integrated equipment arrangement.
Quick Installation
Pre-assembled system reduces onsite installation time.
Integrated Design
Combines filtration equipment into a complete skid package.

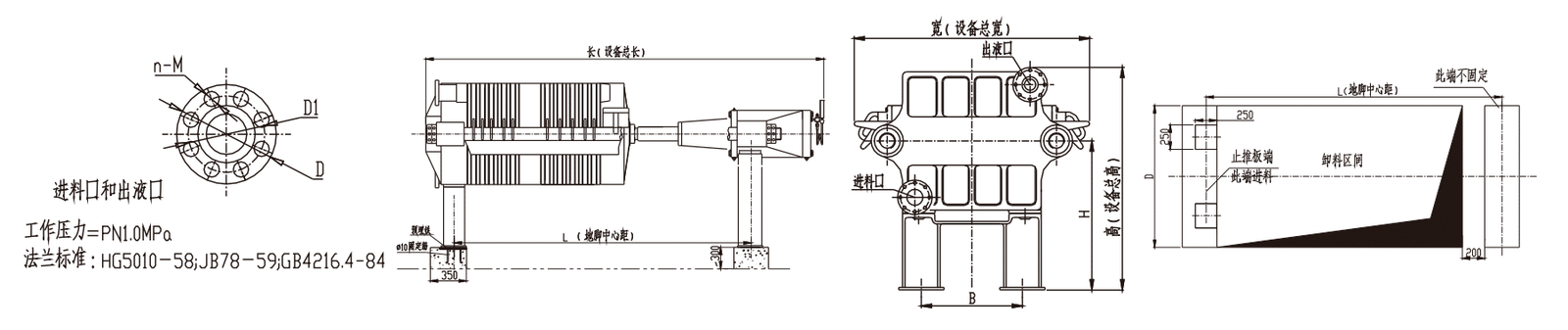

Structural Dimensions & Site Planning
Precise CAD diagrams corresponding to our technical parameters to guide your foundation construction and equipment setup.
Serving Diverse Industrial Applications
Our filter press systems are widely used across multiple industries where efficient dewatering and solid-liquid separation are essential.
| Model | Area (㎡) | Plate Size (mm) | Filter Chamber Volume (L) | Plate Qty (pcs) | Filtration Pressure (MPa) | Motor Power (kW) | Weight (kg) | Overall Dimensions L×W×H (mm) | Foundation Size (mm) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | B | D | H | |||||||||
| XZ30/870-U | 30 | 870×870 (Optional: 800×800) | 460 | 23 | 0.6-4.0 | 2.2 | 2680 | 3465×1465×1230 | 2360 | 700 | 1380 | 785 |
| XZ40/870-U | 40 | 595 | 30 | 3050 | 3855×1465×1230 | 2750 | ||||||
| XZ50/870-U | 50 | 748 | 38 | 3456 | 4395×1465×1230 | 3290 | ||||||
| XZ60/870-U | 60 | 902 | 46 | 4003 | 4835×1465×1230 | 3730 | ||||||
| XZ70/870-U | 70 | 1056 | 54 | 4584 | 5275×1465×1230 | 4170 | ||||||
| XZ80/870-U | 80 | 1210 | 62 | 5082 | 5715×1465×1230 | 4610 | ||||||
| XZ50/1000-U | 50 | 1000×1000 | 736 | 28 | 0.6-4.0 | 4.0 | 4128 | 4290×1580×1380 | 3120 | 780 | 1480 | 870 |
| XZ60/1000-U | 60 | 889 | 34 | 4636 | 4710×1580×1380 | 3480 | ||||||
| XZ70/1000-U | 70 | 1041 | 40 | 5143 | 5010×1580×1380 | 3840 | ||||||
| XZ80/1000-U | 80 | 1193 | 46 | 5651 | 5370×1580×1380 | 4200 | ||||||
| XZ100/1000-U | 100 | 1475 | 57 | 6628 | 6030×1580×1380 | 4860 | ||||||
| XZ120/1000-U | 120 | 1777 | 69 | 7644 | 6750×1580×1380 | 5580 | ||||||
| XZ100/1250-U | 100 | 1250×1250 | 1468 | 36 | 0.6-4.0 | 4.0 | 8307 | 5430×1900×1630 | 3970 | 850 | 1740 | 995 |
| XZ120/1250-U | 120 | 1746 | 43 | 9308 | 5880×1900×1630 | 4430 | ||||||
| XZ150/1250-U | 150 | 2250 | 55 | 11000 | 6400×1900×1630 | 5210 | ||||||
| XZ160/1250-U | 160 | 2341 | 58 | 11492 | 6860×1900×1630 | 5400 | ||||||
| XZ180/1250-U | 180 | 2619 | 65 | 12494 | 7315×1900×1630 | 5860 | ||||||
| XZ200/1250-U | 200 | 2896 | 72 | 13504 | 7770×1900×1630 | 6310 | ||||||
| XZ220/1250-U | 220 | 3214 | 80 | 14652 | 8290×1900×1630 | 6830 | ||||||
| XZ250/1250-U | 250 | 3650 | 91 | 16227 | 9010×1900×1630 | 7550 | ||||||
| XZ200/1500-U | 200 | 1500×1500 | 3500 | 49 | 0.6-4.0 | 11 | 20030 | 6570×2200×1820 | 5250 | 1170 | 1990 | 1070 |
| XZ250/1500-U | 250 | 4375 | 61 | 22978 | 7395×2200×1820 | 6090 | ||||||
| XZ300/1500-U | 300 | 5250 | 74 | 26026 | 8300×2200×1820 | 6990 | ||||||
| XZ350/1500-U | 350 | 6125 | 86 | 29220 | 9120×2200×1820 | 7840 | ||||||
| XZ400/1500-U | 400 | 7000 | 99 | 32574 | 10050×2200×1820 | 8750 | ||||||
| XZ450/1500-U | 450 | 7875 | 111 | 35586 | 10860×2200×1820 | 9590 | ||||||
| XZ500/1500-U | 500 | 8750 | 123 | 38606 | 11730×2200×1820 | 10430 | ||||||
| XZ600/2000-U | 600 | 2000×2000 | 12000 | 85 | 0.6-4.0 | 15 | 49000 | 11100×3000×2500 | 9200 | 1660 | 2000 | 1050 |
| XZ700/2000-U | 700 | 14000 | 99 | 53000 | 12200×3000×2500 | 10300 | ||||||
| XZ800/2000-U | 800 | 16000 | 113 | 57000 | 13350×3000×2500 | 11450 | ||||||
| XZ900/2000-U | 900 | 18000 | 127 | 61000 | 14500×3000×2500 | 12600 | ||||||
| XZ1000/2000-U | 1000 | 20000 | 141 | 65000 | 15600×3000×2500 | 13830 | ||||||
