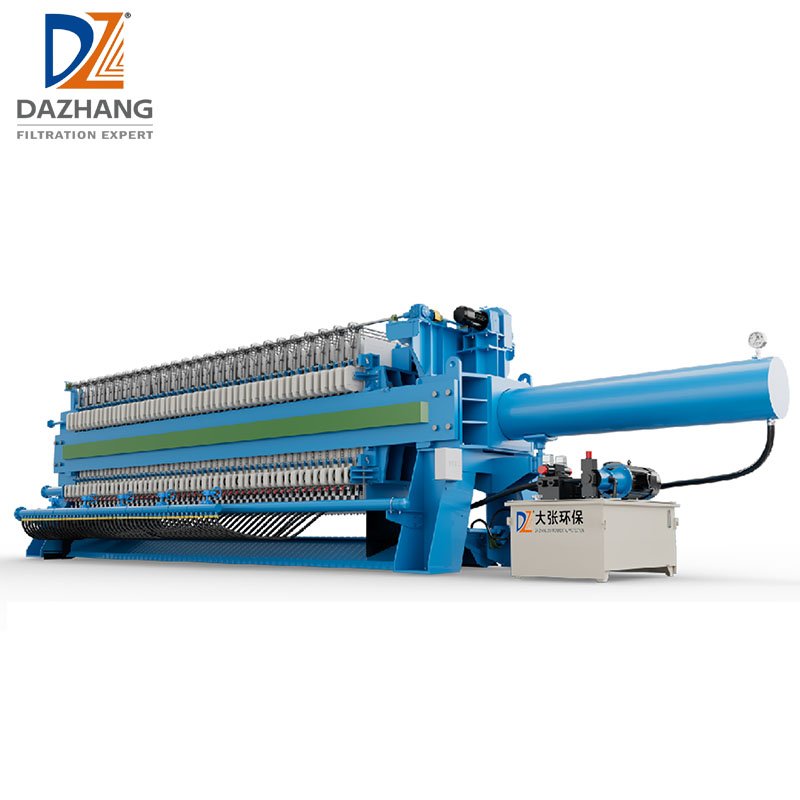

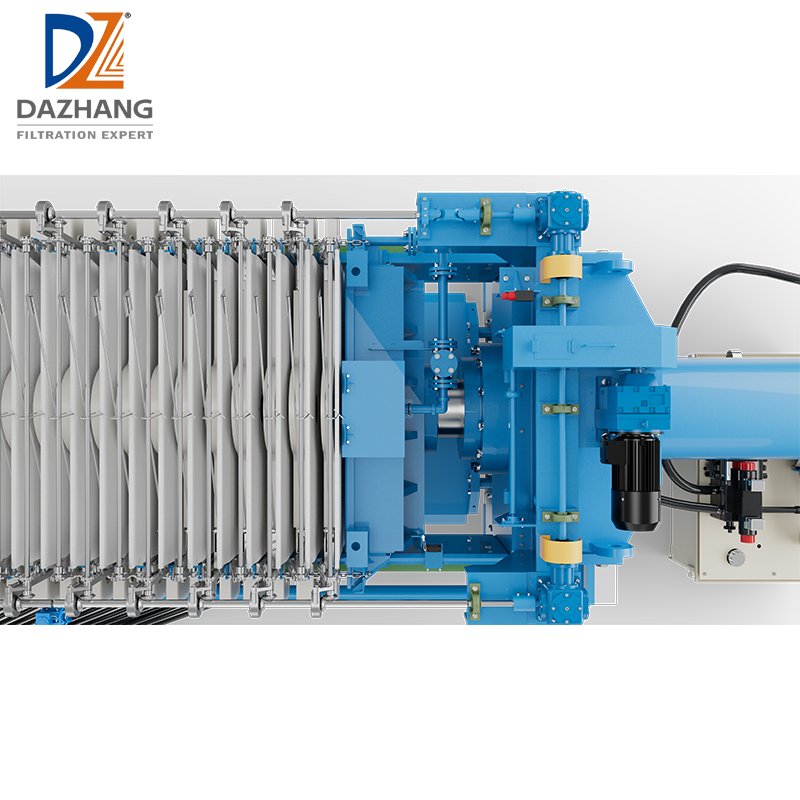

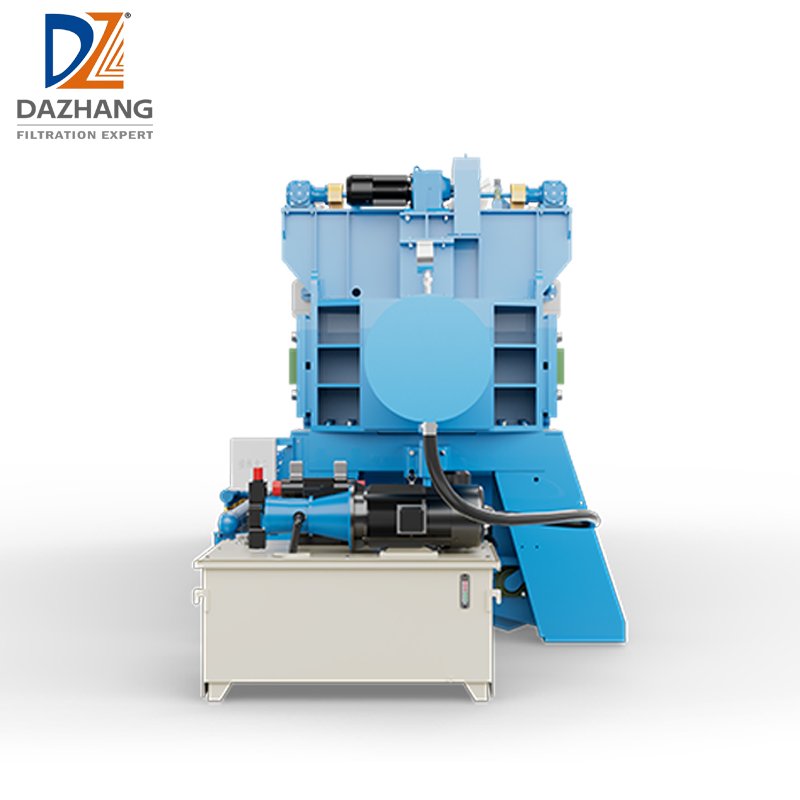

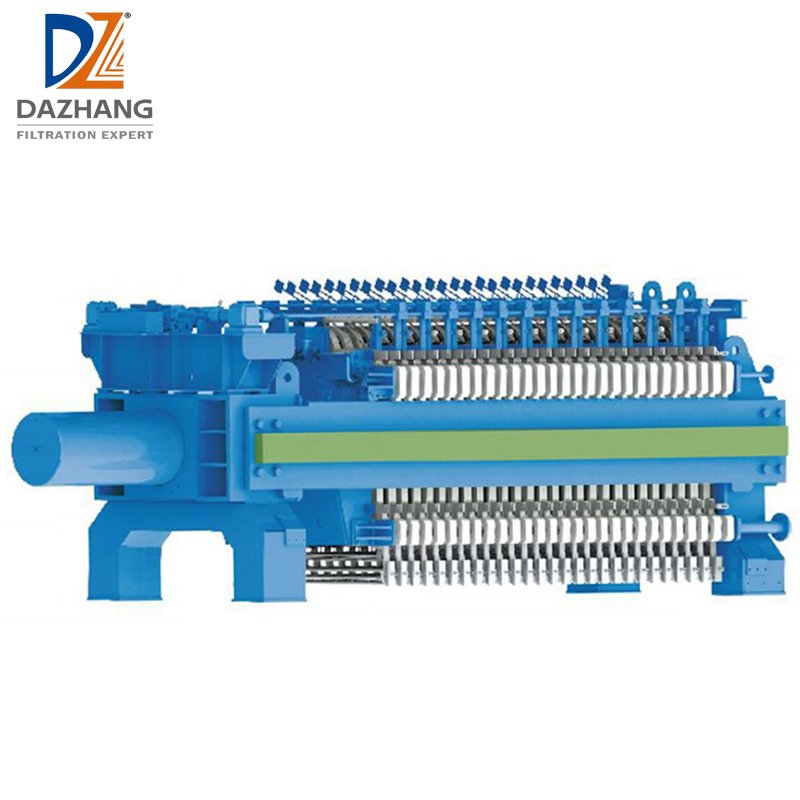

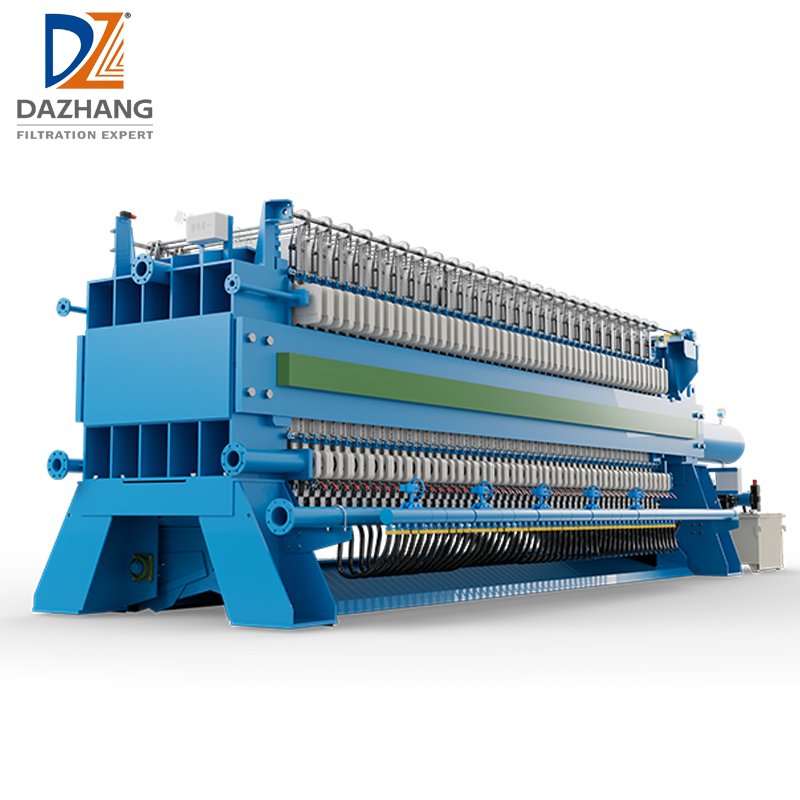

Cloth Traveling Filter Press

The Cloth Traveling Filter Press is designed for fully automatic solid-liquid separation with an advanced filter cloth traveling system. It enables complete cake discharge, automatic cloth cleaning, and continuous high-efficiency operation, making it an ideal solution for mining, chemical processing, wastewater treatment, and other demanding industrial filtration applications.

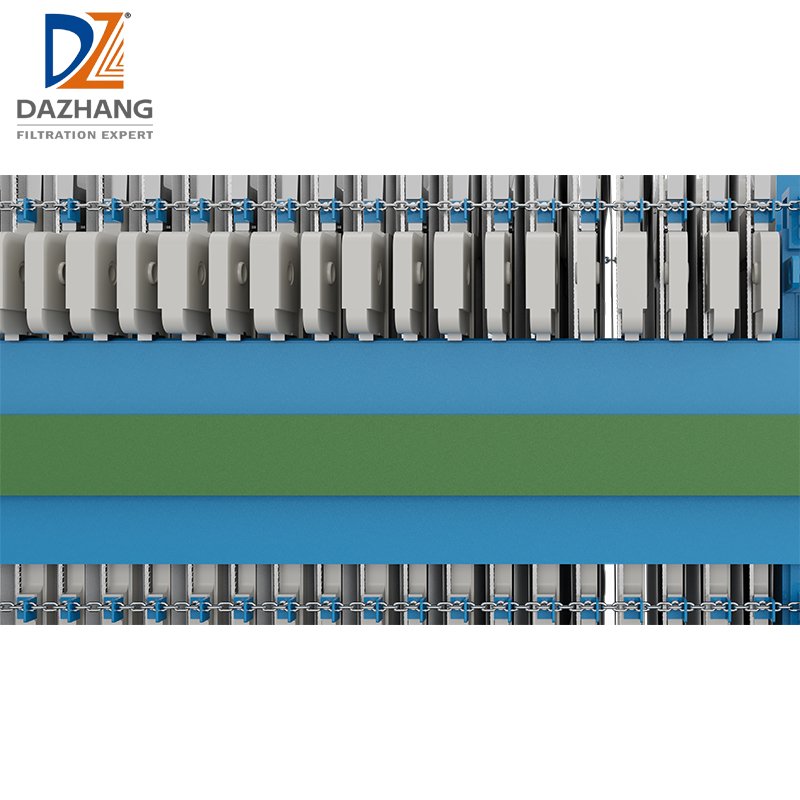

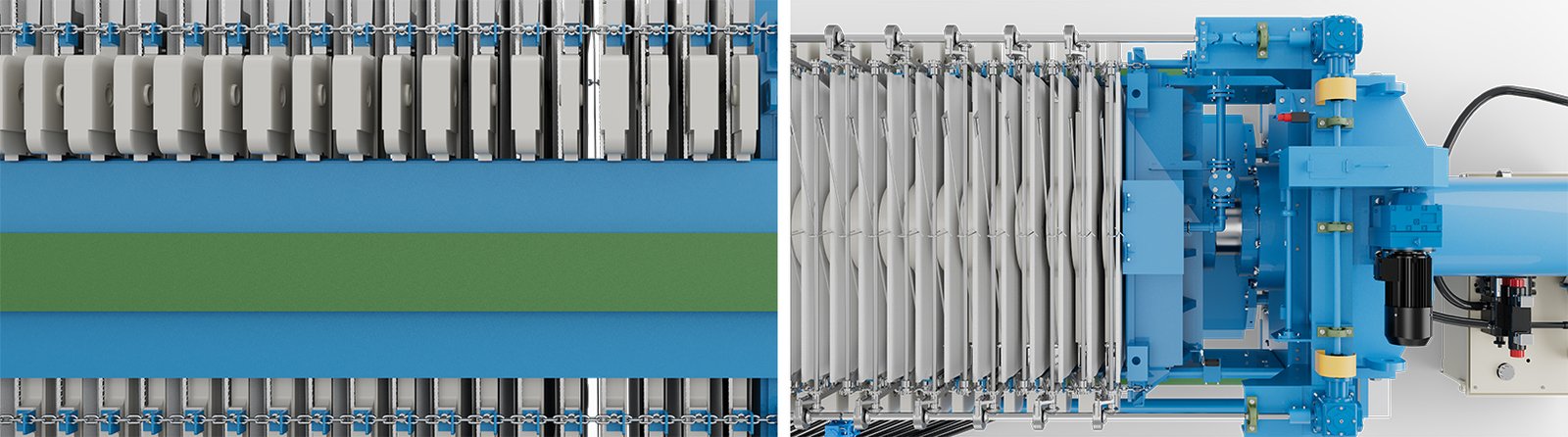

Automatic Cloth Travel

Automatic cloth movement ensures efficient cake release.

Complete Cake Discharge

Removes sticky and thin filter cakes effectively.

Automatic Cloth Cleaning

Simultaneous cloth washing reduces manual maintenance.

Reliable Performance

Built for long-term industrial dewatering applications.

Structural Dimensions & Site Planning

Precise CAD diagrams corresponding to our technical parameters to guide your foundation construction and equipment setup.

Serving Diverse Industrial Applications

Our filter press systems are widely used across multiple industries where efficient dewatering and solid-liquid separation are essential.

XZA-11 Series

Model	Number of Chambers	Plate Size (mm)	Filtration Area (㎡)	Chamber Volume (m³)	Installed Power (kW)	Dimensions (mm)			Net Weight (t)
Model	Number of Chambers	Plate Size (mm)	Filtration Area (㎡)	Chamber Volume (m³)	Installed Power (kW)	L	W	H	Net Weight (t)
XZA-1110	10	1100×1100	20	0.35	16.5	5933	2200	2620	12
XZA-1116	16	1100×1100	32	0.56	16.5	6797	2000	2620	16
XZA-1120	20	1100×1100	40	0.7	16.5	7373	2000	2620	17
XZA-1126	26	1100×1100	52	0.91	16.5	8237	2000	2620	18
XZA-1130	30	1100×1100	60	1.05	16.5	8813	2000	2620	19

XZA-15 Series

Model	Number of Chambers	Plate Size (mm)	Filtration Area (㎡)	Chamber Volume (m³)	Installed Power (kW)	Dimensions (mm)			Net Weight (t)
Model	Number of Chambers	Plate Size (mm)	Filtration Area (㎡)	Chamber Volume (m³)	Installed Power (kW)	L	W	H	Net Weight (t)
XZA-1520	20	1500×1500	72.8	1.274	17.2	7373	2600	2650	30
XZA-1526	26	1500×1500	94.64	1.6556	17.2	8238	2600	2650	32
XZA-1530	30	1500×1500	109.2	1.911	17.2	8813	2600	2650	34

XZB-15 Series

Model	Number of Chambers	Plate Size (mm)	Filtration Area (㎡)	Chamber Volume (m³)	Installed Power (kW)	Dimensions (mm)			Net Weight (t)
Model	Number of Chambers	Plate Size (mm)	Filtration Area (㎡)	Chamber Volume (m³)	Installed Power (kW)	L	W	H	Net Weight (t)
XZB-1536	36	1500×1500	131.04	2.293	17.2	8377	2600	2650	36
XZB-1540	40	1500×1500	145.6	2.548	17.2	8953	2600	2650	37
XZB-1546	46	1500×1500	167.44	2.93	17.2	9817	2600	2650	39
XZB-1550	50	1500×1500	182	3.185	17.2	10393	2600	2650	40
XZB-1556	56	1500×1500	203.84	3.567	17.2	11257	2600	2650	42
XZB-1560	60	1500×1500	218.4	3.822	17.2	11833	2600	2650	44

XZC-15 Series

Model	Number of Chambers	Plate Size (mm)	Filtration Area (㎡)	Chamber Volume (m³)	Installed Power (kW)	Dimensions (mm)			Net Weight (t)
Model	Number of Chambers	Plate Size (mm)	Filtration Area (㎡)	Chamber Volume (m³)	Installed Power (kW)	L	W	H	Net Weight (t)
XZC-1566	66	1500×1500	240.24	4.204	19.4	11189	2600	2650	46
XZC-1570	70	1500×1500	254.8	4.459	19.4	11655	2600	2650	47
XZC-1576	76	1500×1500	276.64	4.841	19.4	12409	2600	2650	49
XZC-1580	80	1500×1500	291.2	5.096	19.4	13350	2600	2650	51

XZD-15 Series

Model	Number of Chambers	Plate Size (mm)	Filtration Area (㎡)	Chamber Volume (m³)	Installed Power (kW)	Dimensions (mm)			Net Weight (t)
Model	Number of Chambers	Plate Size (mm)	Filtration Area (㎡)	Chamber Volume (m³)	Installed Power (kW)	L	W	H	Net Weight (t)
XZD-1520	20	1500×1500	76.2	1.143	15	8680	3250	3904	25.8
XZD-1526	26	1500×1500	99	1.485	15	9520	3250	3904	28.44
XZD-1530	30	1500×1500	114.2	1.713	15	10080	3250	3904	30.2
XZD-1536	36	1500×1500	137.1	2.057	15	10920	3250	3904	32.84
XZD-1540	40	1500×1500	152.3	2.285	15	11480	3250	3904	34.6
XZD-1550	50	1500×1500	190.4	2.856	15	12880	3250	3904	39

Need Help Selecting the Right Filter Press?

Our engineers will recommend the most suitable model based on your material characteristics, processing capacity, and production requirements.

What You'll Gain

Every filter press is manufactured with premium materials and precision engineering to ensure long-term operational stability.

Automatic Self-Cleaning Systems

Self-cleaning filtration units engineered for continuous, low-maintenance operations.

German-Standard Filter Plates

Precision filter plates built to DIN standards for exceptional high-pressure durability.

Intelligent PLC Control

Automated operation minimizes labor and increases efficiency.

Reliable Hydraulic System

Stable hydraulic performance ensures dependable filtration cycles.

Advanced Manufacturing Capability

From laser cutting to final assembly, every process is carefully controlled to ensure product consistency.

High-Precision CNC Machining

High-precision CNC centers process critical structural components with ultra-tight tolerances, guaranteeing flawless structural integrity and seamless fit.

Automated Robotic Welding

Multi-axis welding robots execute consistent, high-strength welds on complex structures, boosting efficiency while eliminating human error.

Eco-Friendly Spray Painting

Advanced dust-free spray coating ensures uniform surface coverage, superior corrosion resistance, and long-lasting durability.

Rigorous Machine Commissioning

Every unit undergoes comprehensive assembly testing and performance verification under simulated conditions before dispatch to ensure zero-defect delivery.
