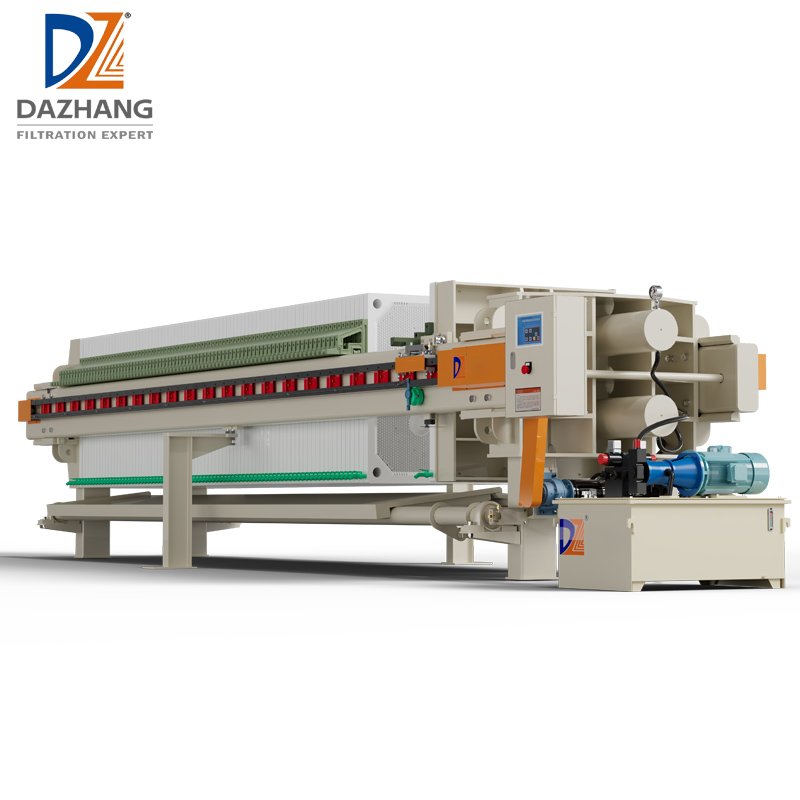

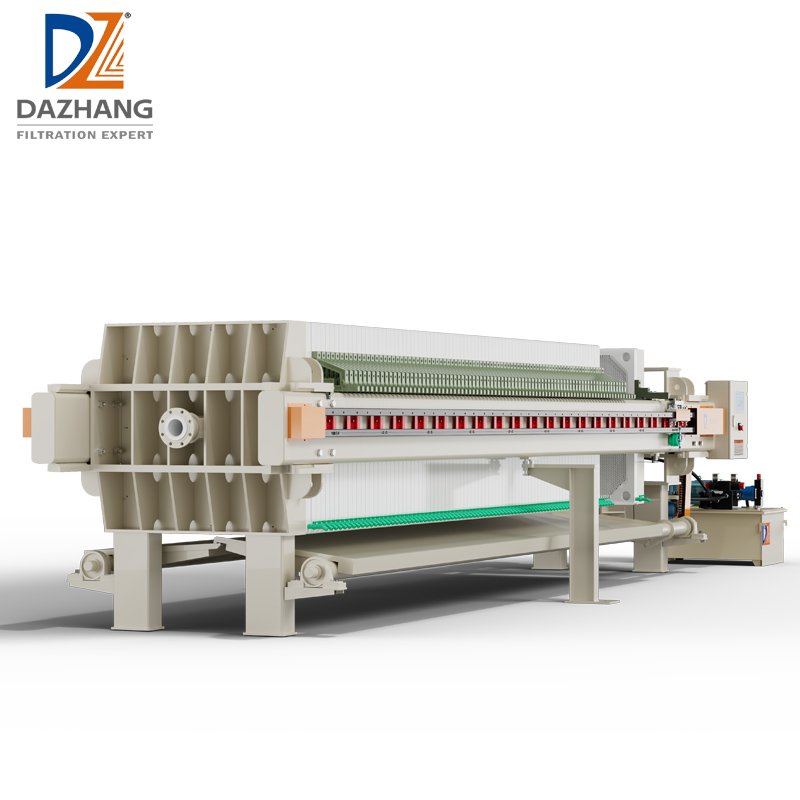

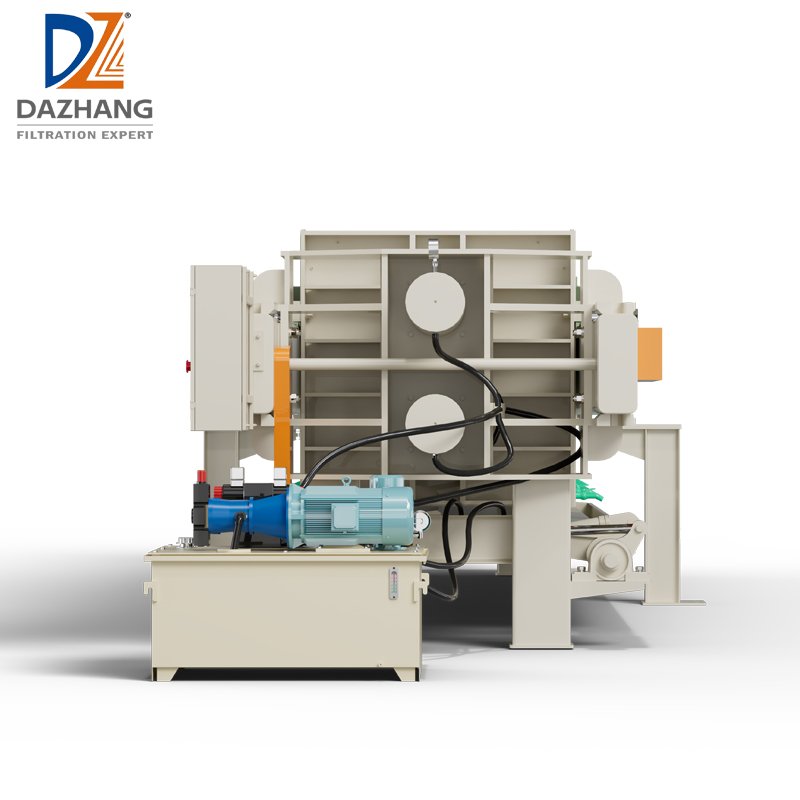

Program-Controlled Automatic Plate Shifting Chamber Filter Press
Engineered for high-frequency operations, this program-controlled automatic chamber filter press delivers highly efficient and economical solid-liquid separation. By integrating an advanced PLC system, remote control capabilities, and an enhanced hydraulic design, it maximizes filter cake discharge while ensuring stable, energy-saving performance for easily dehydrated materials.
Intelligent Remote Control
Equipped with a microchip controller, PLC, and touch screen, allowing for complete automation and convenient remote operation.
Comprehensive Automation
Seamlessly executes plate pressing, liquid collector control, plate shifting, and automatic cloth washing without manual intervention.
Maximized Cake Discharge

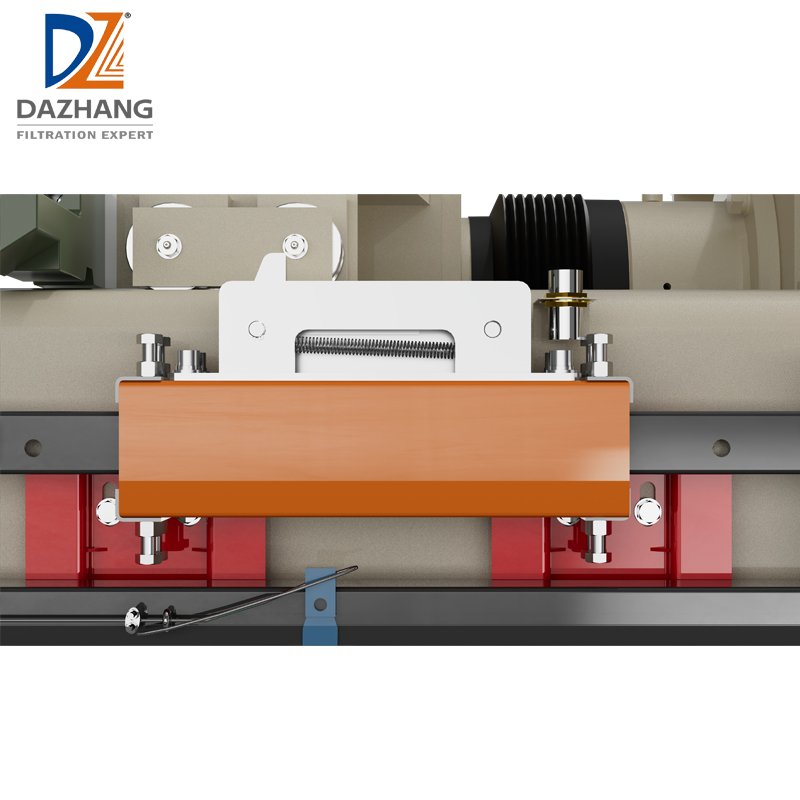

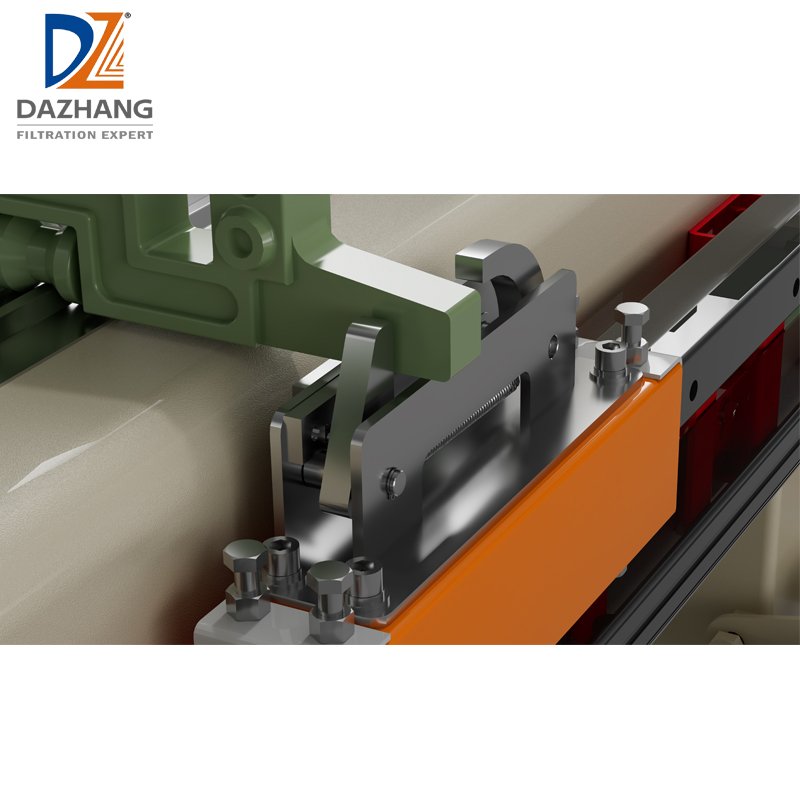

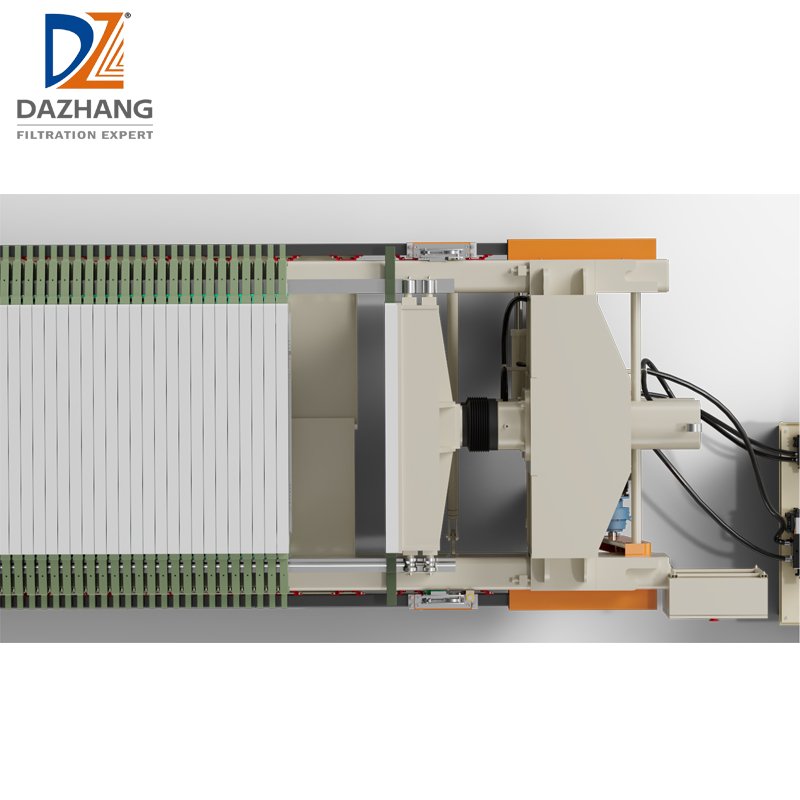

An integrated automatic plate shifter and enhanced hydraulic cylinder significantly increase discharging efficiency and throughput.
Compact & Energy-Efficient
A highly compact structure designed for stable, economical performance, perfectly suited for high-frequency industrial processing.

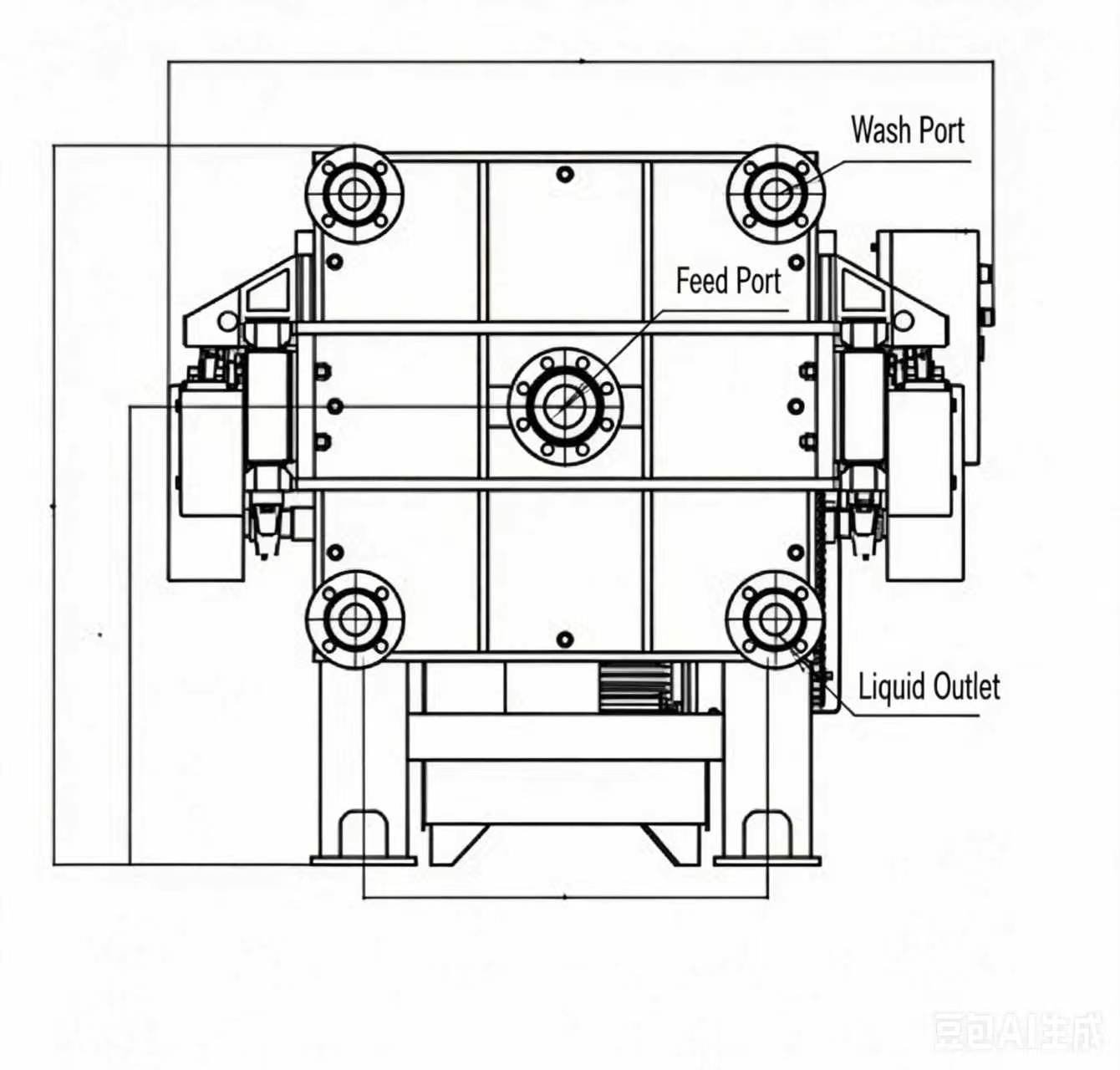

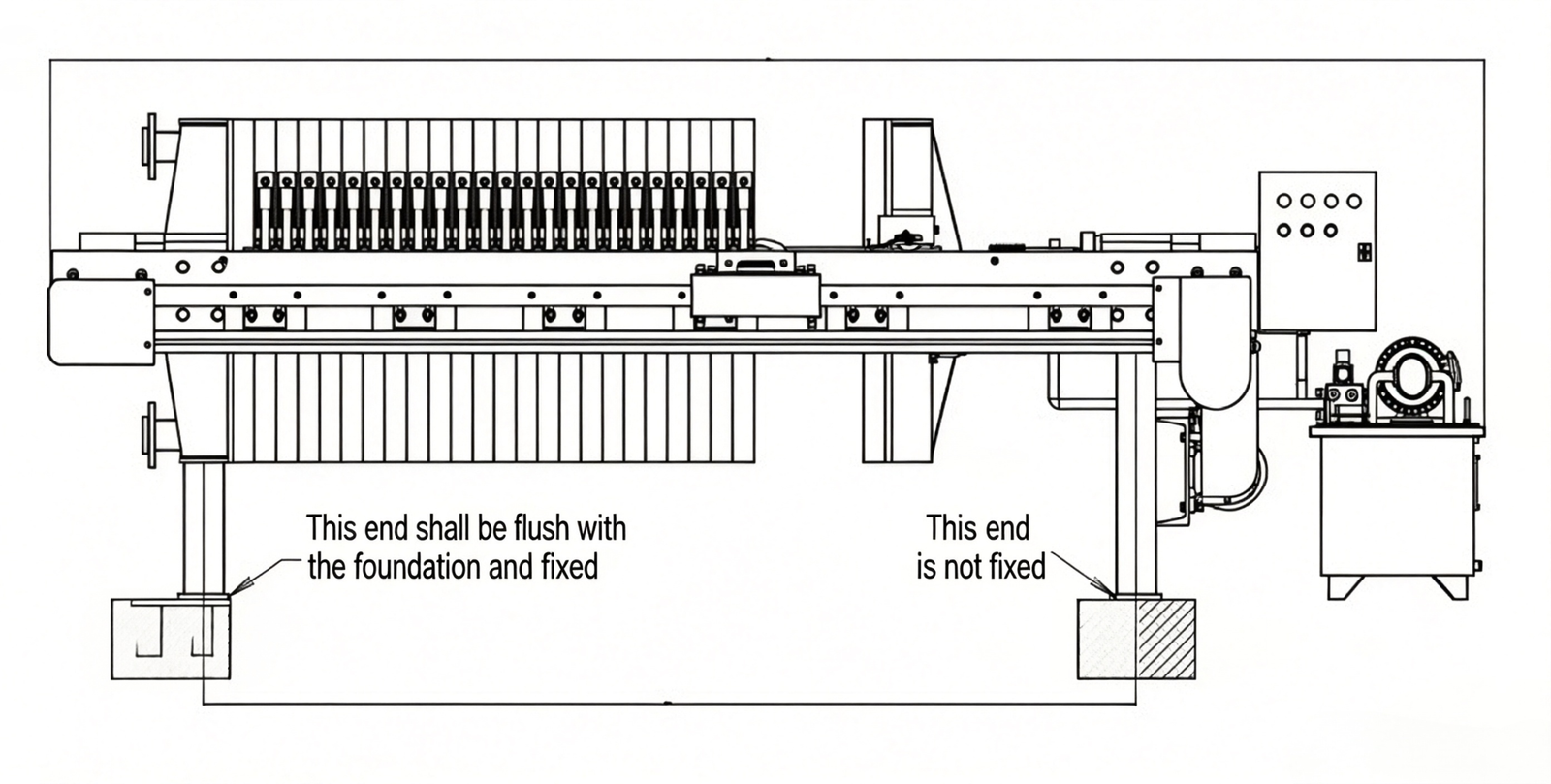

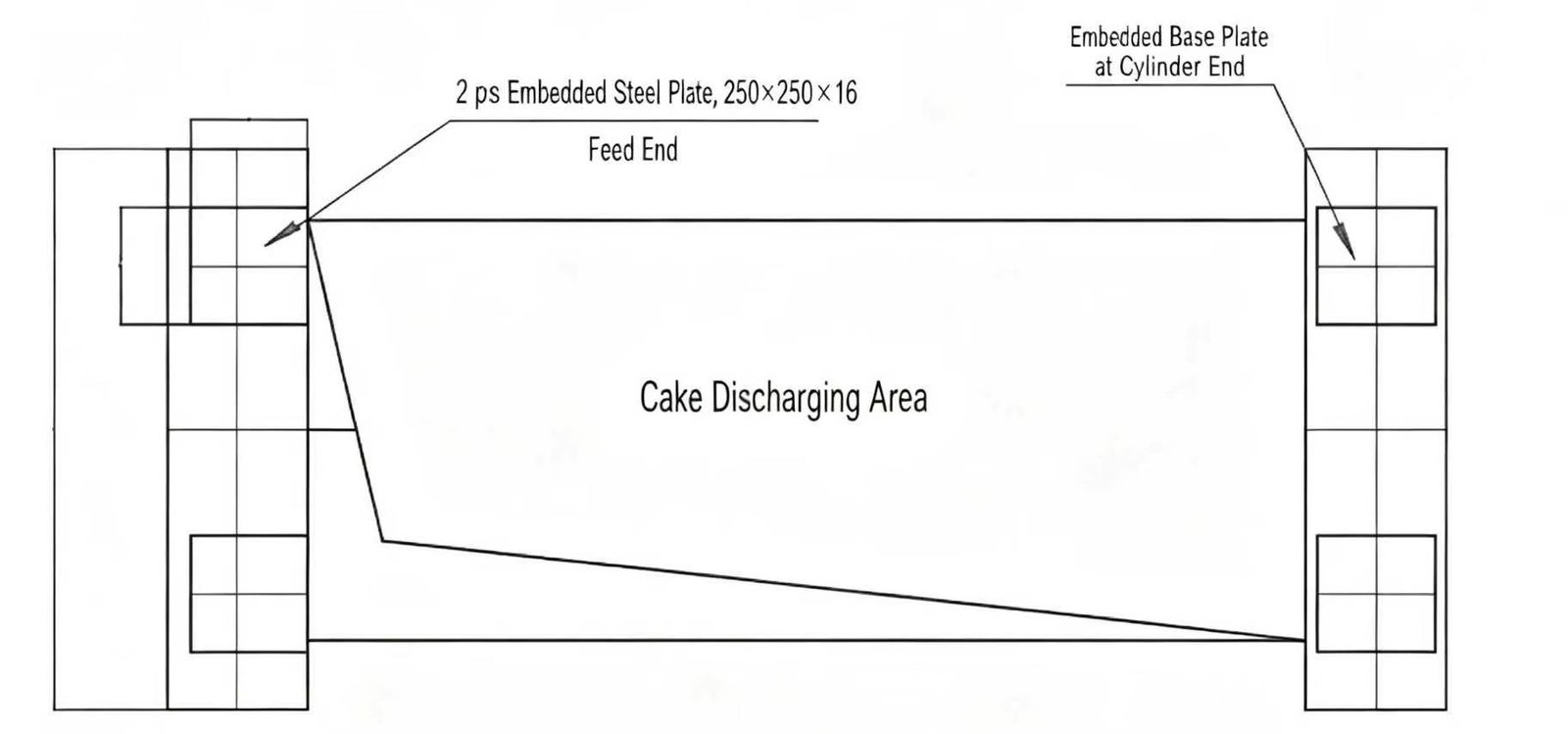

Structural Dimensions & Site Planning
Standard dimensional drawings are provided for preliminary layout planning and equipment installation. Final dimensions may vary according to filtration area, plate size, and customized configuration.
Serving Diverse Industrial Applications
The following specifications cover the standard configurations of our Program-Controlled Chamber Filter Press series. Customized models are available according to filtration capacity, operating pressure, and automation requirements.
| Model | Area (m²) | Plate Size (mm) | Filter Chamber Volume (L) | Plate Qty (pcs) | Filtration Pressure (MPa) | Motor Power (kW) | Weight (kg) | Dimensions LxWxH (mm) | Foundation Size (mm) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | B | D | H | |||||||||
| XZ30/870-U | 30 | 870x870 Or 800x800 | 460 | 23 | 0.6-4.0 | 2.2 | 2680 | 3465x1465x1230 | 2360 | 700 | 1380 | 785 |
| XZ40/870-U | 40 | 595 | 30 | 3050 | 3855x1465x1230 | 2750 | ||||||
| XZ50/870-U | 50 | 748 | 38 | 3456 | 4395x1465x1230 | 3290 | ||||||
| XZ60/870-U | 60 | 902 | 46 | 4003 | 4835x1465x1230 | 3730 | ||||||
| XZ70/870-U | 70 | 1056 | 54 | 4584 | 5275x1465x1230 | 4170 | ||||||
| XZ80/870-U | 80 | 1210 | 62 | 5082 | 5715x1465x1230 | 4610 | ||||||
| XZ50/1000-U | 50 | 1000x1000 | 736 | 28 | 0.6-4.0 | 4.0 | 4128 | 4290x1580x1380 | 3120 | 780 | 1480 | 870 |
| XZ60/1000-U | 60 | 889 | 34 | 4636 | 4710x1580x1380 | 3480 | ||||||
| XZ70/1000-U | 70 | 1041 | 40 | 5143 | 5010x1580x1380 | 3840 | ||||||
| XZ80/1000-U | 80 | 1193 | 46 | 5651 | 5370x1580x1380 | 4200 | ||||||
| XZ100/1000-U | 100 | 1475 | 57 | 6628 | 6030x1580x1380 | 4860 | ||||||
| XZ120/1000-U | 120 | 1777 | 69 | 7644 | 6750x1580x1380 | 5580 | ||||||

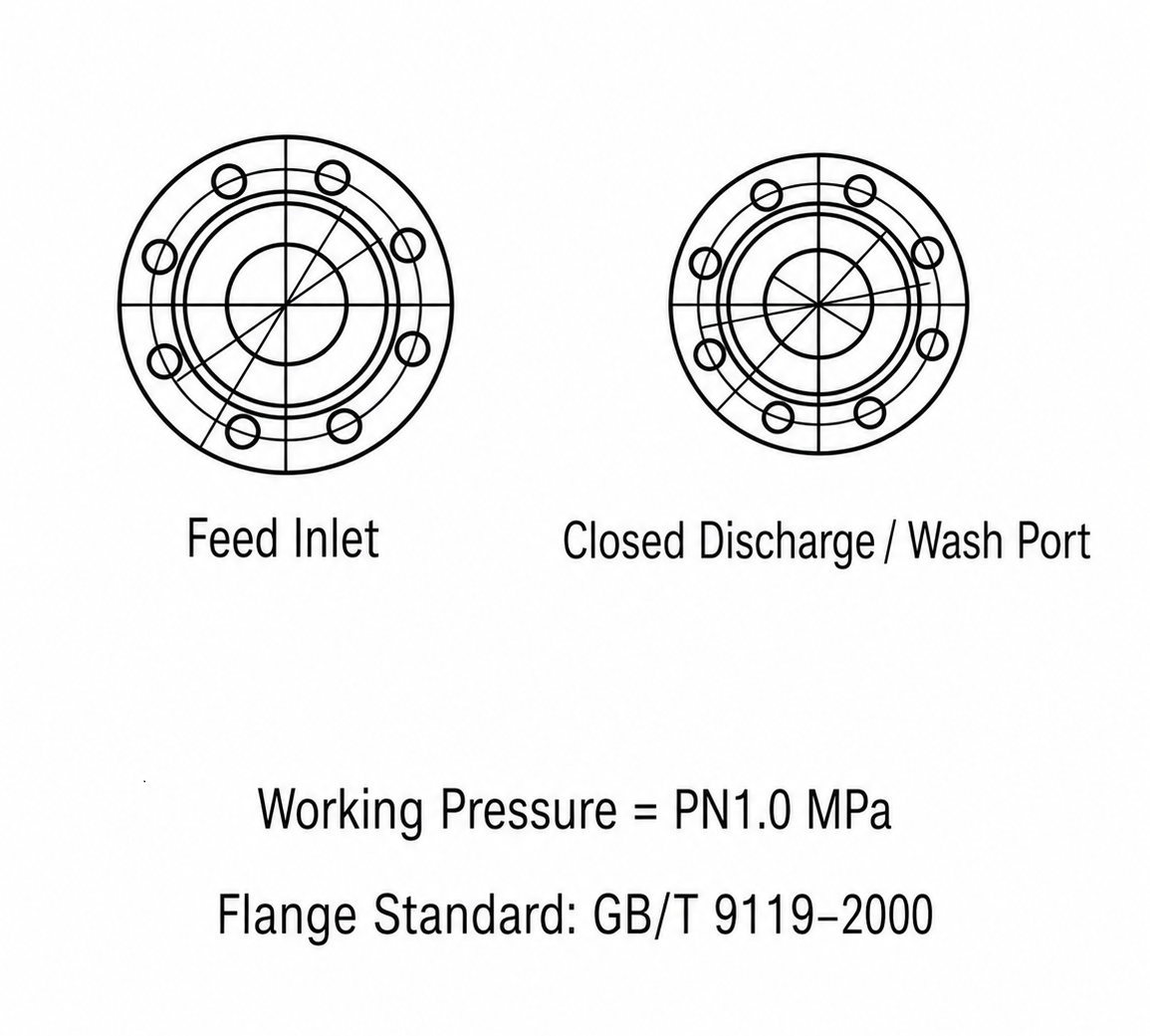

Flange Dimensions
| Type | D | D1 | D2 | n-M | d | d1 | d2 | n-m |
|---|---|---|---|---|---|---|---|---|
| 1250 | 220 | 180 | 88 | 8-φ18 | 185 | 145 | 60 | 4-φ18 |
| 1500 | 285 | 240 | 132 | 8-φ22 | 200 | 160 | 70 | 8-φ18 |
| 2000 | 340 | 295 | 198 | 12-φ22 | 220 | 180 | 88 | 8-φ18 |
Large Filter Press Models
| Model | Area (m²) | Plate Size (mm) | Filter Chamber Volume (L) | Plate Qty (pcs) | Filtration Pressure (MPa) | Motor Power (kW) | Weight (kg) | Dimensions LxWxH (mm) | Foundation Size (mm) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | B | D | H | |||||||||
| XZ100/1250-U | 100 | 1250x1250 | 1468 | 36 | 0.6-4.0 | 4.0 | 8307 | 5430×1900×1630 | 3970 | 850 | 1740 | 995 |
| XZ120/1250-U | 120 | 1746 | 43 | 9308 | 5880×1900×1630 | 4430 | ||||||
| XZ150/1250-U | 150 | 2250 | 55 | 11000 | 6400×1900×1630 | 5210 | ||||||
| XZ160/1250-U | 160 | 2341 | 58 | 11492 | 6860×1900×1630 | 5400 | ||||||
| XZ180/1250-U | 180 | 2619 | 65 | 12494 | 7315×1900×1630 | 5860 | ||||||
| XZ200/1250-U | 200 | 2896 | 72 | 13504 | 7770×1900×1630 | 6310 | ||||||
| XZ220/1250-U | 220 | 3214 | 80 | 14652 | 8290×1900×1630 | 6830 | ||||||
| XZ250/1250-U | 250 | 3650 | 91 | 16227 | 9010×1900×1630 | 7550 | ||||||
| XZ200/1500-U | 200 | 1500x1500 | 3500 | 49 | 0.6-4.0 | 11 | 20030 | 6570×2200×1820 | 5250 | 1170 | 1990 | 1070 |
| XZ250/1500-U | 250 | 4375 | 61 | 22978 | 7395×2200×1820 | 6090 | ||||||
| XZ300/1500-U | 300 | 5250 | 74 | 26026 | 8300×2200×1820 | 6990 | ||||||
| XZ350/1500-U | 350 | 6125 | 86 | 29220 | 9120×2200×1820 | 7840 | ||||||
| XZ400/1500-U | 400 | 7000 | 99 | 32574 | 10050×2200×1820 | 8750 | ||||||
| XZ450/1500-U | 450 | 7875 | 111 | 35586 | 10860×2200×1820 | 9590 | ||||||
| XZ500/1500-U | 500 | 8750 | 123 | 38606 | 11730×2200×1820 | 10430 | ||||||
| XZ600/2000-U | 600 | 2000x2000 | 12000 | 85 | 0.6-4.0 | 15 | 49000 | 11100×3000×2500 | 9200 | 1660 | 2000 | 1050 |
| XZ700/2000-U | 700 | 14000 | 99 | 53000 | 12200×3000×2500 | 10300 | ||||||
| XZ800/2000-U | 800 | 16000 | 113 | 57000 | 13350×3000×2500 | 11450 | ||||||
| XZ900/2000-U | 900 | 18000 | 127 | 61000 | 14500×3000×2500 | 12600 | ||||||
| XZ1000/2000-U | 1000 | 20000 | 141 | 65000 | 15600×3000×2500 | 13830 | ||||||
