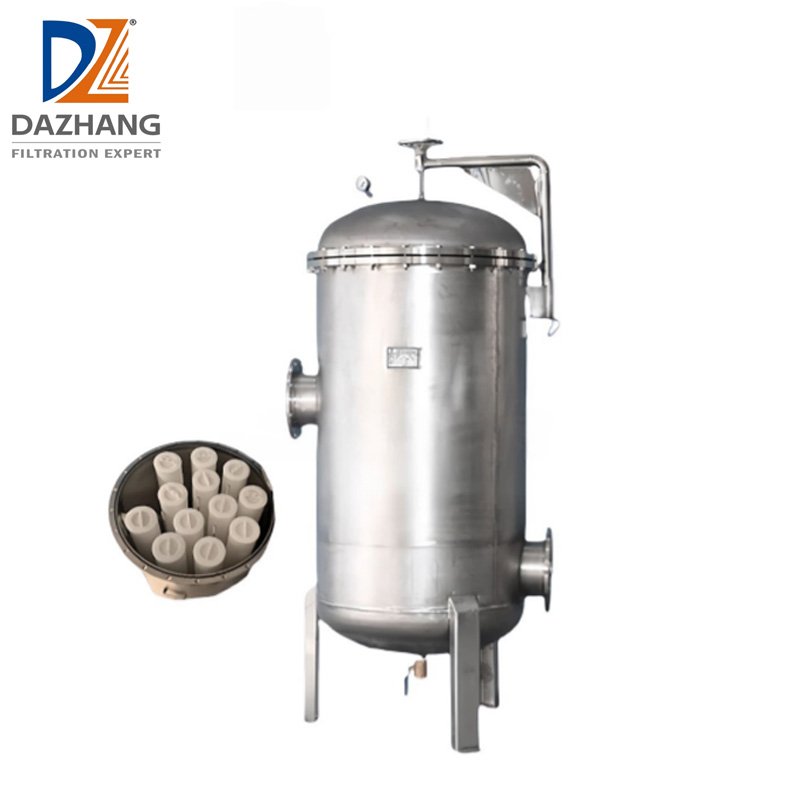

Cartridge Filter

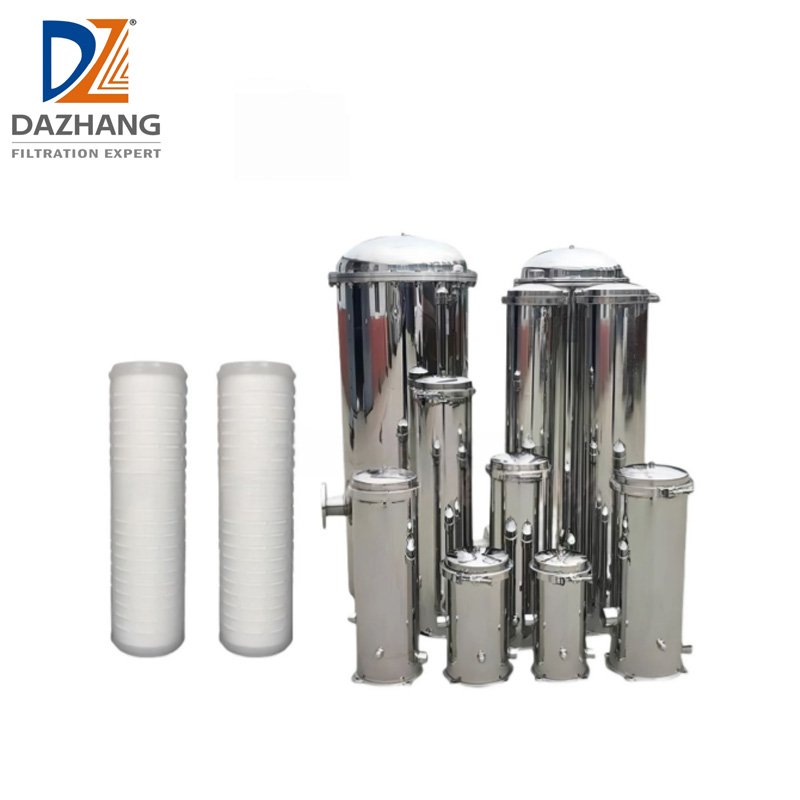

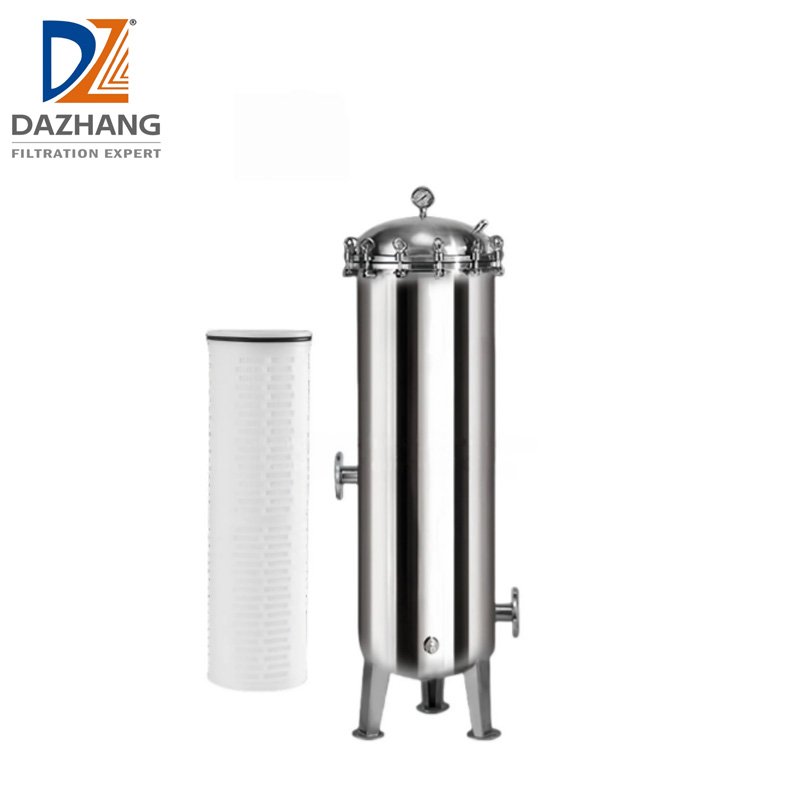

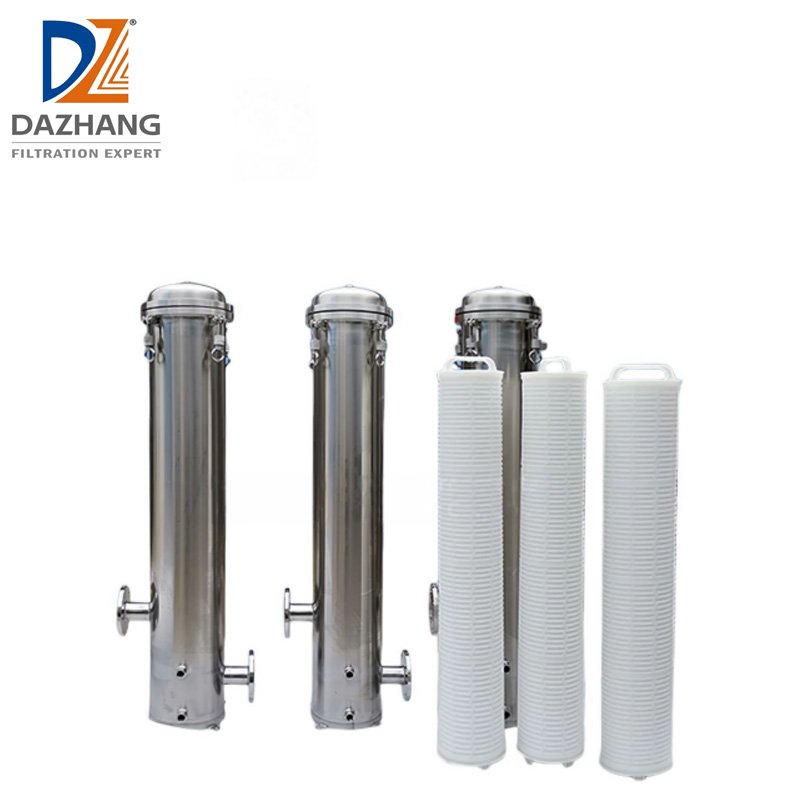

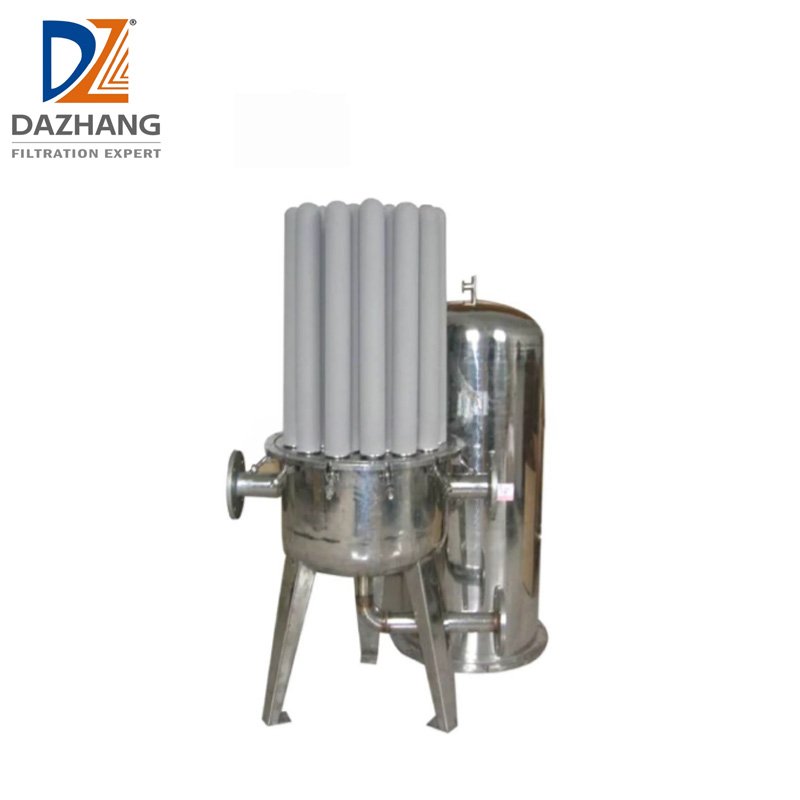

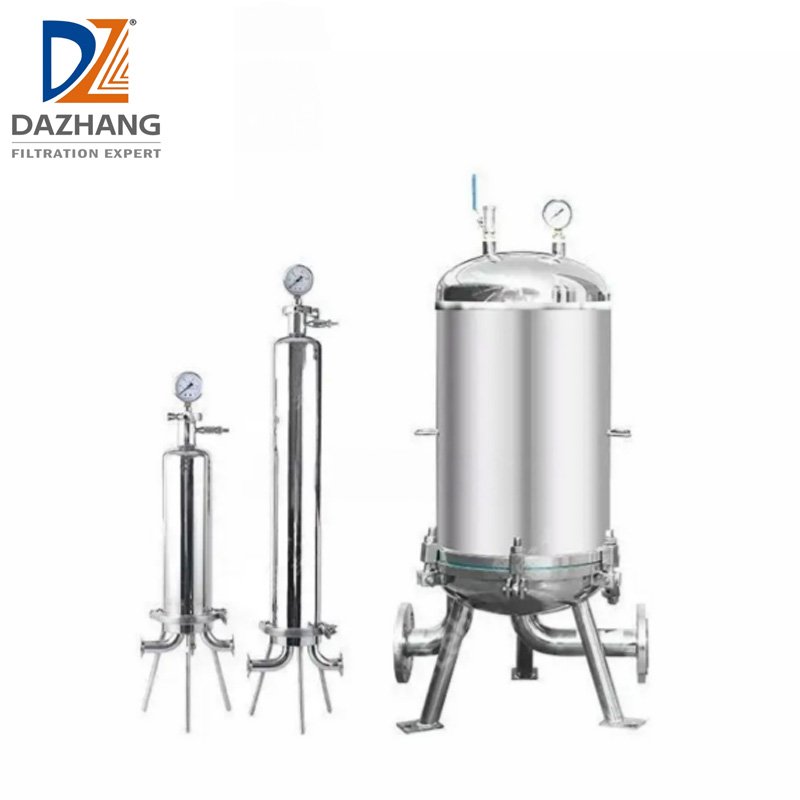

The Cartridge Filter is designed for precision liquid filtration using replaceable filter cartridges as the filtration medium. With stainless steel housing, flexible cartridge options, and filtration accuracy from 0.1 to 60μm, it provides reliable impurity removal for chemical, pharmaceutical, food, and industrial applications.
Chemical Resistance
Stable performance against acids, alkalis, and solvents.
High Precision Filtration
Provides accurate filtration with precision cartridge elements.

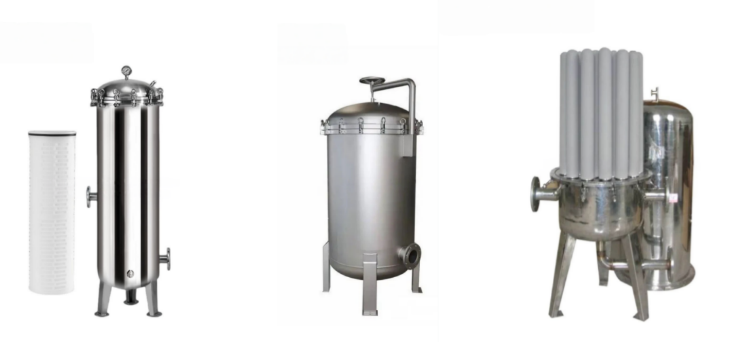

Multiple Cartridge Options
Supports various cartridge materials for different applications.
Clean Filtration
High-purity materials prevent secondary contamination.

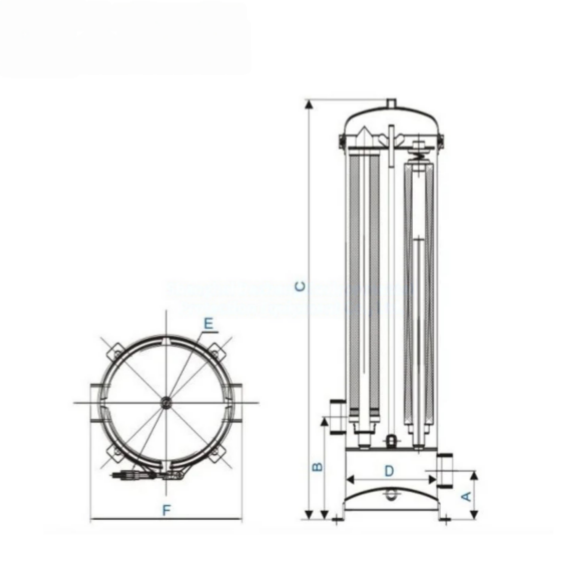

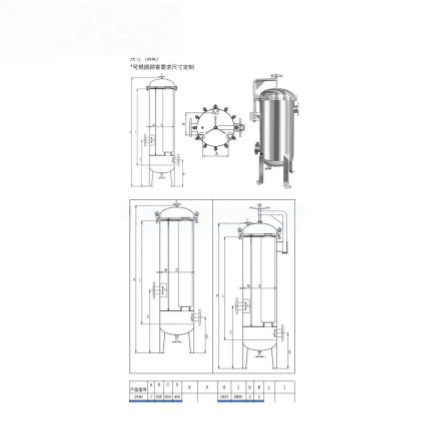

Structural Dimensions & Site Planning
Precise CAD diagrams corresponding to our technical parameters to guide your foundation construction and equipment setup.
Serving Diverse Industrial Applications
Our filter press systems are widely used across multiple industries where efficient dewatering and solid-liquid separation are essential.
| Model | Theoretical Flow (t/h) | Housing Diameter (mm) | Equipment Height (mm) | Inlet/Outlet Size (DN) |
|---|---|---|---|---|
| DZLX10-1 | 0.1-0.3 | 102 | 500 | 25-32 |
| DZLX20-1 | 0.3-0.5 | 102 | 750 | 25-32 |
| DZLX30-1 | 1.2 | 102 | 1000 | 25-32 |
| DZLX40-1 | 1.5 | 102 | 1250 | 25-32 |
| DZLX10-3 | 1.2 | 160 | 650 | 25-40 |
| DZLX20-3 | 1.5 | 160 | 900 | 25-40 |
| DZLX30-3 | 3.6 | 160 | 1150 | 25-40 |
| DZLX40-3 | 4.5 | 160 | 1400 | 25-40 |
| DZLX20-5 | 2.5 | 200 | 900 | 25-50 |
| DZLX30-5 | 6 | 200 | 1150 | 25-50 |
| DZLX40-5 | 7.5 | 200 | 1400 | 25-50 |
| DZLX20-7 | 3.5 | 230 | 900 | 25-50 |
| DZLX30-7 | 8.4 | 230 | 1150 | 25-50 |
| DZLX40-7 | 10.5 | 230 | 1400 | 25-50 |
| DZLX20-9 | 4.5 | 300 | 900 | 25-50 |
| DZLX30-9 | 10.8 | 300 | 1150 | 25-50 |
| DZLX40-9 | 13.5 | 300 | 1400 | 25-50 |
| DZLX20-12 | 6 | 300 | 900 | 25-50 |
| DZLX30-12 | 14.4 | 300 | 1150 | 25-50 |
| DZLX40-12 | 18 | 300 | 1400 | 25-50 |
| DZLX20-15 | 7.5 | 300 | 900 | 25-65 |
| DZLX30-15 | 18 | 350 | 1150 | 25-65 |
| DZLX40-15 | 22.5 | 350 | 1400 | 25-65 |
| DZLX30-20 | 24 | 400 | 1150 | 25-65 |
| DZLX40-20 | 30 | 400 | 1400 | 25-65 |
| DZLX30-25 | 30 | 450 | 1150 | 50-80 |
| DZLX40-25 | 37.5 | 450 | 1400 | 50-80 |
| DZLX30-30 | 36 | 500 | 1500 | 50-80 |
| DZLX40-30 | 45 | 500 | 1750 | 50-80 |
| DZLX30-35 | 42 | 550 | 1500 | 50-100 |
| DZLX40-35 | 52.5 | 550 | 1750 | 50-100 |
| DZLX30-40 | 48 | 600 | 1500 | 50-100 |
| DZLX40-40 | 60 | 600 | 1750 | 50-100 |
| DZLX40-60 | 90 | 700 | 1750 | 50-100 |
| DZLX40-80 | 120 | 800 | 1750 | 50-100 |
| DZLX40-100 | 150 | 900 | 1750 | 50-125 |
Need Help Selecting the Right Filter Press?
Our engineers will recommend the most suitable model based on your material characteristics, processing capacity, and production requirements.
What You'll Gain
Every industrial filter is manufactured using premium materials and precision engineering to ensure stable filtration performance, easy maintenance, and long service life.
Premium Build, Long Service Life
Built with SUS304/316L stainless steel, our filters resist corrosion and ensure reliable long-term operation.
Clear Filtration, High Efficiency
Designed for depth and surface filtration, achieving precise particle retention from 0.22 to 200 microns.
Lower Maintenance Costs
Durable construction reduces consumables and simplifies replacement for faster, easier servicing.
Safe Design, Wide Applications
Fully enclosed structures prevent leakage and adapt to industries from food to chemical processing.
