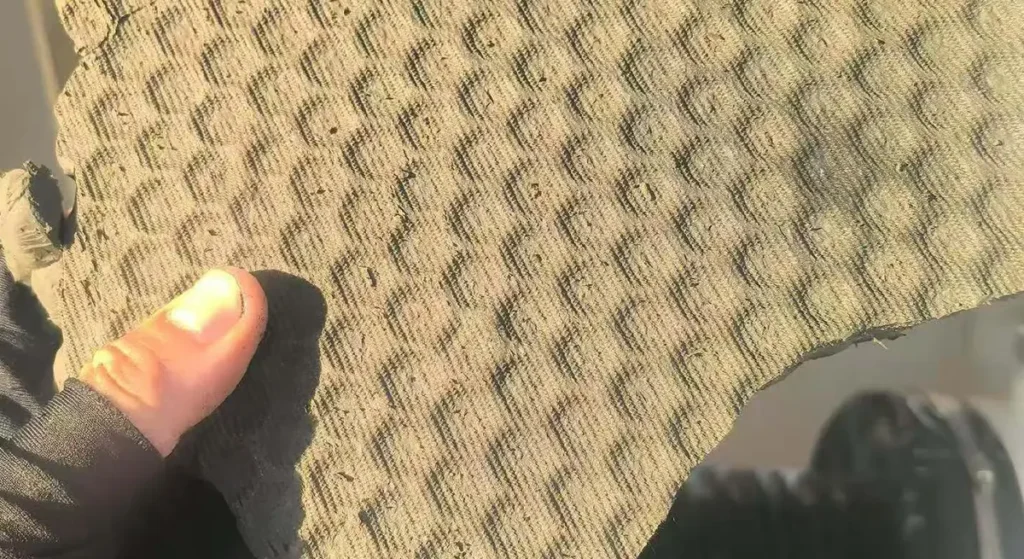

Cake moisture, cycle time, and clean cake release decide whether a filter press meets your dewatering target. Feed solids, polymer conditioning, chamber depth, pressure, and chamber versus membrane plates set those results. On municipal sludge a well-specified press typically delivers 50–65% cake moisture. At DZ Environmental we manufacture program-controlled chamber and automatic membrane filter presses so either plate type can follow the same process logic.
Which result comes first: cake moisture or cycle time?
Set moisture first when haulage or landfill cost dominates; set cycle time first when you must clear a fixed daily solids load. Membrane squeeze often cuts cake moisture by 5–12 percentage points versus a chamber press on the same sludge. Chamber machines stay competitive when slurry filters easily and you need more cake volume. Lock the moisture target, then confirm the cycle still fits thickener output and shift length.
When is a membrane filter press the better choice?
Use a membrane filter press when extra dryness offsets plate cost. After filtration, membranes squeeze the cake at about 12–16 bar and close residual voids. Chamber presses rely on feed pressure alone, usually 6–16 bar. From the projects we have engineered, membrane units recover cost faster on sticky municipal sludge and oily industrial cake. A program-controlled automatic membrane filter press keeps squeeze and discharge repeatable when cycles must stay under 60–90 minutes.
What feed conditions control dryness and cloth life?
Polymer type, dose, and mixing time set floc strength before slurry enters the press. Weak flocs blind cloths, extend fill time, and leave wet cores. Municipal sludge often needs 4–12 kg polymer per dry tonne. Feed solids of 2–6% suit most machines; dilute feed mainly adds cycle time. Cloth weave plus core-blow or air-blow then remove free liquor without tearing the cake.
How do plate size, depth, and pressure set throughput?
Larger plates raise cake mass per cycle but lengthen fill and filtration. Deeper chambers hold more slurry and can add 10–20 minutes. Filtration at 8–16 bar is common; higher pressure helps only while the cake stays permeable. Our program-controlled machines integrate fill, squeeze, blow, and plate-shift so pressure stays consistent. Size on dry solids per hour, not plate count alone.
| Factor | Chamber | Membrane |
|---|---|---|
| Municipal cake moisture | 60–70% | 50–62% |
| Squeeze step | No | 12–16 bar |
| Capex | Lower | Higher |
| Best fit | Easy-filter, high volume | High disposal cost, sticky cake |
Which operating costs matter besides power?
Cloth life, polymer, wash water, and cake haulage usually exceed electricity. Cloth life of 1,000–3,000 cycles is realistic with regular wash and correct squeeze. Membrane plates cost more up front but cut haulage when moisture drops several points. Stainless steel filter presses limit corrosion in chemical and food duty. Hydraulic chamber filter presses keep capital lower when squeeze is not required.
FAQ
What moisture can you expect on municipal sludge? Chamber presses often reach 60–70%; membrane squeeze commonly reaches 50–62% with proper conditioning.
Does higher pressure always dry the cake more? No. Once pores close, extra pressure adds little dryness and can damage cloths.
How long is a typical cycle? Many plants run 45–120 minutes depending on solids, chamber depth, and squeeze.
When is stainless steel justified? Use it when chloride, acid, or food-grade duty would corrode carbon steel.
What data do you need before sizing? Sludge type, feed solids, target moisture, daily dry-solids load, and cycle window.
